Manufacturer Part #

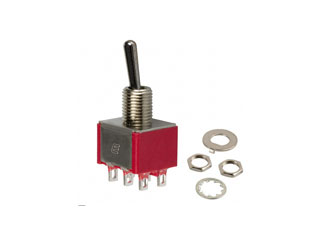

100DP2T1B1M1QEH
2 Pos Toggle Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | E-Switch | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:96 per Bulk Mounting Method:Panel Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
E-Switch 100DP2T1B1M1QEH - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=100DP2T1B1M1QEH&field4=E-Switch&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--toggle/100dp2t1b1m1qeh-e-switch-5193147
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=100DP2T1B1M1QEH&field4=E-Switch&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--toggle/100dp2t1b1m1qeh-e-switch-5193147
E-Switch 100DP2T1B1M1QEH - Technical Attributes
Attributes Table
| Switch Operation: | On-Mom |
| Circuitry: | DPDT |
| Rated Voltage (VAC): | 120VAC |
| Voltage Rating: | 28V |
| Current Rating: | 5A |
| Insulation Resistance: | 1GΩ |
| Contact Material: | Copper Alloy |
| Contact Plating: | Silver |
| Actuator Type: | Round |
| Termination Style: | Solder Lug |
| Dielectric Withstanding Voltage: | 1000V |
| Bushing Style: | Threaded |
| Operating Temperature: | -40°C to +85°C |
| Mounting Method: | Panel Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
11 Weeks
Quantity
Unit Price
96
$2.21
192
$2.19
288
$2.17
384+
$2.15
Product Variant Information section
Available Packaging
Package Qty:
96 per Bulk
Mounting Method:
Panel Mount
