Manufacturer Part #

338DY-2LP11-000

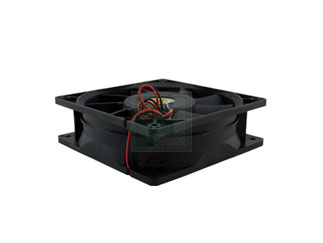

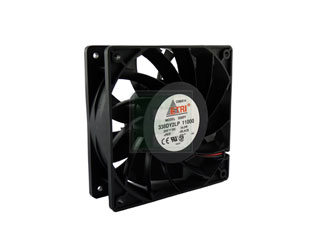

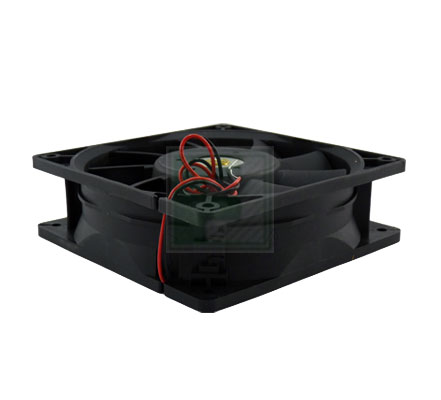

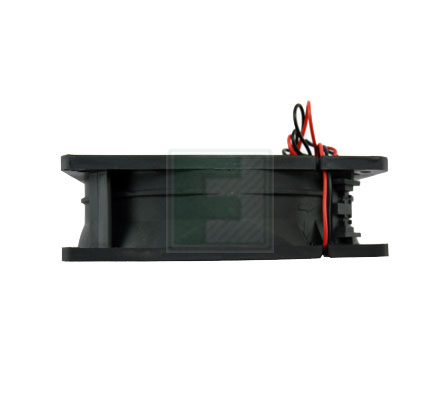

338 Series 4000 RPM 120 x 120 x 38 mm 89.7 L/s 24 V Ball Bearing Fan

ECAD Model:
Mfr. Name: Rosenberg
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Rosenberg 338DY-2LP11-000 - Technical Attributes
Attributes Table
Type: Axial Square
Bearing Type: Ball
Air Flow: 190.06CFM
Voltage Rating: 24V
Dimension: L  120mm x W  120mm x H  38mm
Features & Applications

The 338DY-2LP11-000 is a part of 338D Series Middle Speed 120 X 120 X 38 mm Ball Bearing Fan It has an operating temperature ranging from - 10 °C to + 60 °C

Features:

  • Counter-clockwise viewed from front of fan blade
  • Air Flow:  89.7 CFM
  • Operating voltage :24 VDC
  • Acoustic Noise: 59 dB(A)
  • Ball bearing System
  • Speed: 4000 RPM
  • Material Impeller & Frame: Plastic (UL 94V-0)
  • Weight :370 gm
