Sullins | EBC08DRXN

Manufacturer Part #

EBC08DRXN

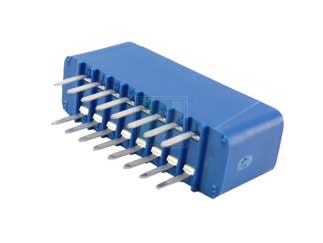

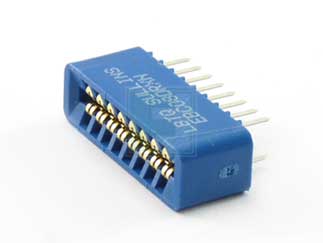

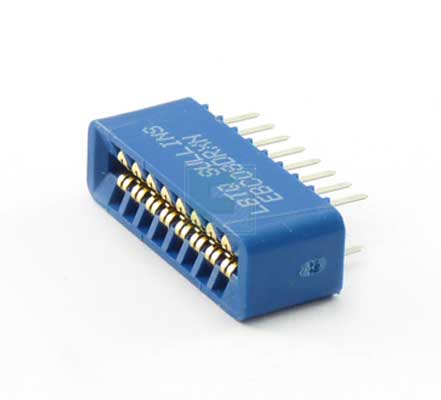

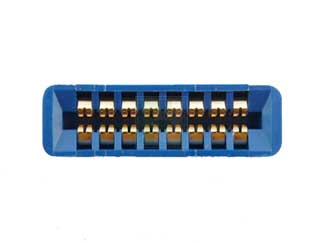

16 Position ( 2 x 8 ) 2.54 mm Center Dip Solder Dual Readout Card Edge Connector

ECAD Model:
Mfr. Name: Sullins
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Sullins EBC08DRXN - Technical Attributes
Attributes Table
Type: Board to Board (Card Edge)
Style/Orientation: Receptacle
No of Positions: 16
Pitch: 2.54 mm
Termination: Solder
Mounting Method: Through Hole
Features & Applications

The EBC08DRXN is a part of EBC series 16 position connector. It has an operating temperature ranging from -65°C to + 125°C.

Features:

  • 30 mΩ maximum at rated current Molded-in key available in-between or in contact key
  • PBT/Phosphor Bronze
  • Operating Temperature: -65°C to +125°C
  • Processing Temperature: 260° FOR 10 sec.
  • MAXContact Surface: .000010” Gold;
  • Termination: .000100” Pure Tin, Matte
  • .100” [2.54mm]
  • 16 Total Contacts
  • Dual Readout
  • .200”[5.08mm] Row Spacing; .185”[4.70mm] Long Dip Solder
  • No Mounting
