Manufacturer Part #
589159002000006

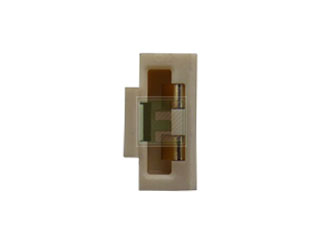

9159 Series Special 2 Way Shorting Socket
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | KYOCERA AVX | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:700 per Reel |
||||||||||
| Date Code: | |||||||||||
Product Specification Section
KYOCERA AVX 589159002000006 - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
China
HTS Code:
8536.69.80.00
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=589159002000006&field4=KYOCERA AVX&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/589159002000006-avx-8838880
-
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=589159002000006&field4=KYOCERA AVX&field18=https://p1na.futureelectronics.com/p/interconnect--connector-tools-contacts-accessories/589159002000006-avx-8838880
KYOCERA AVX 589159002000006 - Technical Attributes
Attributes Table
| Type: | Receptacle |
| Style/Orientation: | Horizontal |
| No of Positions: | 2 |
| Pitch: | 3mm |
| Material: | Nylon |
| Color: | White |
| Operating Temp Range: | -40°C to +125°C |
Features & Applications
The 589159002000006 is a Board-to-Board Interconnect system designed specifically for the unique Solid State Lighting (SSL) market.
It allows two PCB's to be mated end-to-end creating strips of LED lighting.
Features and Benefits:
- Mates to the standard plug connector; does not require a new connector
- Integral latching mechanism; Provides positive attachment to the plug
- Gold plated BeCu spring contacts; reliability for harsh environments
- Available in white; supports SSL market preferences
Applications:
- Coplanar PCB mating in SSL products
- LED linear lighting strips
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
8 Weeks
Quantity
Unit Price
700
$0.525
1,400
$0.52
2,100
$0.515
2,800
$0.51
3,500+
$0.50
Product Variant Information section
Available Packaging
Package Qty:
700 per Reel
