TE Connectivity | 1-1586043-4

Manufacturer Part #

1-1586043-4

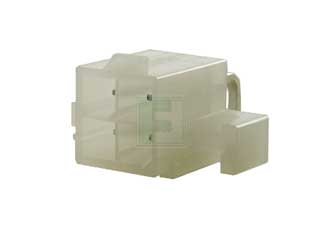

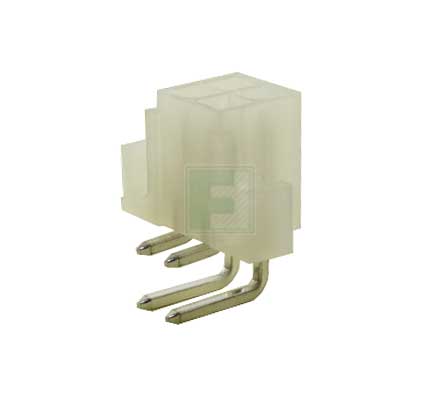

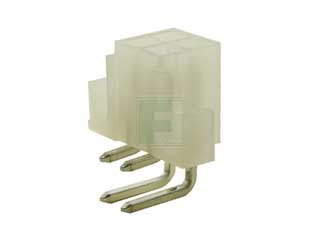

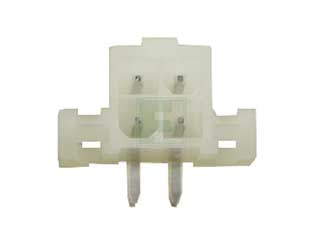

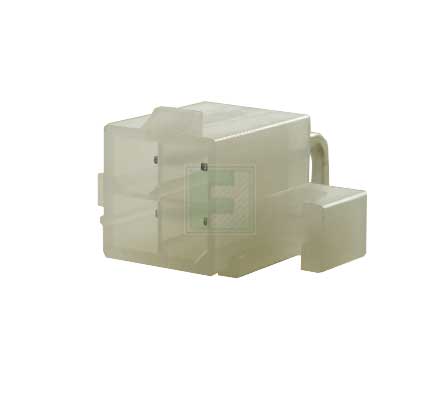

14 Position Dual Row 0.165 inch Right Angle Wire to Board Shrouded Header

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 1-1586043-4 - Technical Attributes
Attributes Table
No of Positions: 14
Pitch: 4.2 mm
Style/Orientation: Right Angle Header/Plug
Termination: Solder
Type: Wire to Board
Mounting Method: PCB Mount
Features & Applications
The 1-1586043-4 is a Low cost, wire-to-wire, wire-to-board and wire-to-panel connectors with 4.2 mm centerline.

Features:

  • Easy mate and unmate with positive latch design
  • Single-row, 3-5 positions: receptacles, panel mount or free-hanging plugs
  • Double-row, 2-24 positions (even only):
    receptacles, panel mount or free-hanging plugs,
    and vertical or right-angle pin headers
  • Available in UL 94V-2 or UL 94V-0 flammability rated nylon
  • roducts are lead free to help promote a cleaner environment
  • Intermateable and interchangeable with Molex Mini-Fit, Jr. and intermateable AMP-DUAC
    connectors

Applications:

  • Computer motherboards/power supplies
  • Harness assemblies used in the Vending,Gaming and Appliance industries
  • Car alarm systems
  • Heating systems

Mating Products:

1-794954-4
1-106527-4

View the Complete family of 1-158604 Interconnects

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
16 Weeks
Minimum Order:
900
Multiple Of:
900
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$801.00
USD
Quantity
Unit Price
900
$0.89
1,800+
$0.865
Product Variant Information section
Related Products
1-1586041-2
1-1586041-2
TE Connectivity
12 Position Dual Row 0.165 inch Right Angle Wire to Board Shrouded Header
As low as: $0.67 (USD)
1198910
1-1586043-6
TE Connectivity
16 Position Dual Row 0.165 inch Right Angle Wire to Board Shrouded Header
As low as: $0.885 (USD)
1-1586043-8
1-1586043-8
TE Connectivity

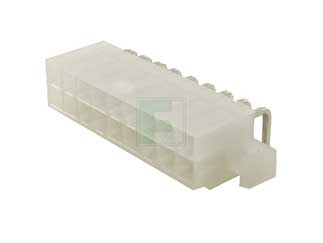

18 Position Dual Row 0.165 inch Right Angle Wire to Board Shrouded Header
