TE Connectivity | 3-1761603-3

Manufacturer Part #

3-1761603-3

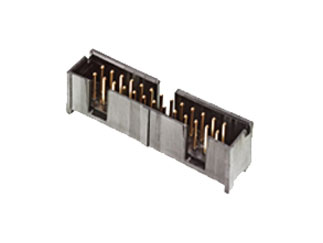

AMP-LATCH 40 Position 2.54 mm Dual Row Through-Hole Straight Pin Header

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 3-1761603-3 - Technical Attributes
Attributes Table
No of Positions: 40
Pitch: 2.54 mm
Style/Orientation: Straight Header/Plug
Termination: Solder
Operating Temp Range: -65°C to +105°C
Voltage Rating: 250V
Current Rating: 1A
Contact Plating: Gold
Material: Polybutylene Terephthalate
No of Rows: 2
Gender: Male
Type: Pin Headers
Mating Type: Push - Pull
Color: Blue
Insulation Resistance: 5000MΩ
Mounting Method: Through Hole
Features & Applications

The 3-1761603-3 is a AMP-LATCH 40 Position Through-Hole Dual Row Straight Shrouded Pin Header .

 Features:

  • Connector
  • Header
  • Pin type
  • AMPLATCH product Line
  • PreLoaded
  • Number of Positions 40
  • Number of Rows 2
  • Centreline is 2.54 mm [0.100 in]

View the 3-1761603 series of Headers



Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
7 Weeks
Minimum Order:
2400
Multiple Of:
800
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$11,904.00
USD
Quantity
Unit Price
800+
$4.96
