Manufacturer Part #
5-146256-5
AMPMODU 10 Position 2.54 mm Dual Row Through-Hole Straight Breakaway Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:320 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | 2337 | ||||||||||
TE Connectivity 5-146256-5 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of ChangesPlating optimization for MOD II Breakaway Header. Before: (1) Current localized Gold Plating: 0.76 m(30 in) Au plating on contact area. (2) Current localized Gold Plating: 0.38 m(15 in) Au plating on contact area. After: (1) New localized Gold Plating: 0.66 m(26 in) PdNi+ 0.1 m(4 in) Au flash on contact area. (2) New localized Gold Plating : 0.28 m(11 in) PdNi+ 0.1 m(4 in) Au flash on contact area. Note: The Pd-Ni + Au flash plating has been validated for MOD II BKW header connector and test report is attached for reference.Reason for Changes:Product Improvement - Optimization of Plating for MOD II BKW Header (Au plating to PdNi+Au flash plating)
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=5-146256-5&field4=TE Connectivity&field18=https://p1emea.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/5-146256-5-te-connectivity-4581807
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=EU&field16=en&field2=5-146256-5&field4=TE Connectivity&field18=https://p1emea.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/5-146256-5-te-connectivity-4581807
TE Connectivity 5-146256-5 - Technical Attributes
| No of Positions: | 10 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -65°C to +105°C |
| Voltage Rating: | 30V |
| Current Rating: | 3A |
| Contact Plating: | Gold |
| Material: | Thermoplastic |
| No of Rows: | 2 |
| Gender: | Male |
| Type: | Breakaway |
| Mating Type: | Push - Pull |
| Color: | Black |
| Mounting Method: | Through Hole |
Features & Applications

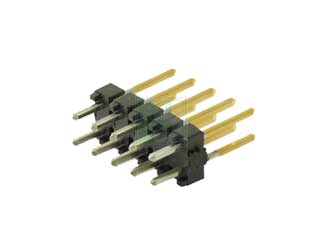

The 5-146256-5 is a AMPMODU 10 Position Through-Hole Dual Row Straight .100 Inch Breakaway Header .
Product Specification:
- Connector
- Header
- Plug Style
- AMPMODU Product Line
- Pin Contact type
- Centreline is 2.54 mm [0.100 in]
- Number of Positions are 10
- Number of Rows are 2
- Applies to PCB
Available Packaging
Package Qty:
320 per Box
Mounting Method:
Through Hole
