Manufacturer Part #
516-120-000-151

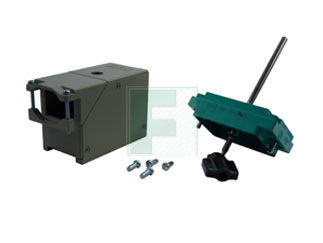

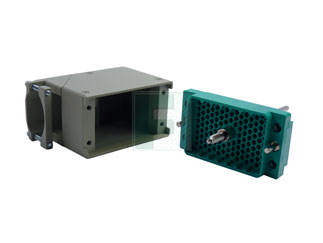

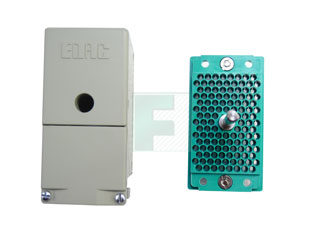

Housing for Non-Gendered Contacts Connector 120 position with 3.81 mm pitch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | EDAC | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Box | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
EDAC 516-120-000-151 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=516-120-000-151&field4=EDAC&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/516-120-000-151-edac-1352913
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=516-120-000-151&field4=EDAC&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--header-plug-board-mount/516-120-000-151-edac-1352913
EDAC 516-120-000-151 - Technical Attributes
Attributes Table
| No of Positions: | 120 |
| Pitch: | 3.81 mm |
| Style/Orientation: | Plug |
| Type: | Header |
Features & Applications
The 516-120-000-151 is a 120 Position 17 Rows Pitch 3.81 mm Plug Housing Rack & Panel Signal Circuits.
Features:
- 150 (3.81) Contact Spacing x .130 (3.30) or .150 (3.81) Row Spacing with Staggered Grid
- Plug and Receptacle in 20, 38, 56, 90 or 120 Contact Sizes
- Edacon Hermaphroditic Contact Mating Design
- Contact Termination Options include Crimp, P.C. Tail, Wire Hole and Wire Wrap
- Mating and Unmating Simplified with use of Actuating Screws
- Optional Covers with Side or Top Entry Cable Clamp in Plastic or Metal Material Available for all Connector Sizes
- Versatile Metal Cover Design permits Assembly or Disassembly After Cabling is Complete plus Cable Entry Style Flexibility
- Actuating Screws, Locknuts, Polarizing Hardware, Covers and Contacts Suitable for either Plug or Receptacle
- Polarizing Hardware Adjustable for 288 Mating Combinations
- Tools Available for Contact Installation, Removal and Crimping and Polarizing Changes
View the available 516-120 series of Headers
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
15 Weeks
Quantity
Unit Price
1
$45.87
3
$45.31
10
$44.70
20
$44.35
40+
$43.69
Product Variant Information section
Available Packaging
Package Qty:
1 per Box
