  5. 9-146278-0

TE Connectivity | 9-146278-0

Manufacturer Part #

9-146278-0

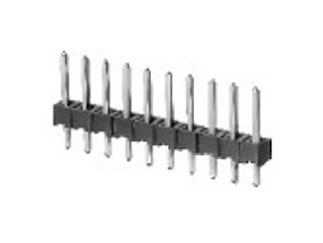

AMPMODU 40 Position 5.84 mm Post Length Single Row Straight Breakaway Header

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code: 2426
Product Specification Section
TE Connectivity 9-146278-0 - Technical Attributes
Attributes Table
No of Positions: 40
Pitch: 2.54 mm
Style/Orientation: Vertical Header/Plug
Termination: Solder
Type: Breakaway
Mounting Method: Through Hole
Features & Applications

The 9-146278-0 is a AMPMODU 40 Position 5.84 mm Post Length Single Row Straight Breakaway Header.

Features:

  • Product Type = Connector
  • Mount Angle = Vertical
  • PCB Mount Retention = Without
  • Surface Mount Compatible = Yes
  • Mating Post Length (mm [in]) = 5.84 [0.230]
  • Panel Mount Retention = Without
  • Termination Post Length (mm [in]) = 3.05 [0.120]
  • Solder Tail Contact Plating = Tin over Nickel
  • Header Type = Breakaway
  • Number of Positions = 40
  • Centerline (mm [in]) = 2.54 [0.100]
  • Row-to-Row Spacing (mm [in]) = 2.54 [0.100]
  • Number of Rows = 1
  • Contact Plating, Mating Area, Material = Tin
  • Contact Shape = Square
  • Contact Base Material = Phosphor Bronze
  • Housing Material = Liquid Crystal Polymer (LCP)

Applications:

  • High Speed Serial Data Connector = No

View the available 9-14627x series of Breakaway Headers

Pricing Section
Global Stock:
2,000
USA:
2,000
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
30 Weeks
Minimum Order:
100
Multiple Of:
100
Total
$157.00
USD
Quantity
Unit Price
100
$1.57
200
$1.55
400
$1.54
1,500+
$1.51
