Manufacturer Part #
0284-0-15-80-16-80-10-0

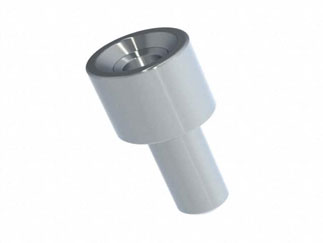

Solder Mount 0.07 Leads Range 0.022-0.034 No Tail Receptacle
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Mill-Max | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Box | ||||||||||
| Date Code: | |||||||||||
Mill-Max 0284-0-15-80-16-80-10-0 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=0284-0-15-80-16-80-10-0&field4=Mill-Max&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--socket-plug-board-mount/0284-0-15-80-16-80-10-0-mill-max-6907240
-
Mill-Max 0284-0-15-80-16-80-10-0 - Technical Attributes
| Type: | Receptacle |
| Style/Orientation: | Straight |
| No of Positions: | 1 |
| Gender: | Female |
| Termination: | Solder |
| Contact Current-Max: | 4.5A |
| Length: | 6.35mm |
| Contact Material: | Berylium Copper |
| Contact Plating: | Tin |
| Pin Hole Diameter: | 1.3mm |
| Mounting Hole Diameter: | 1.778mm |
| Socket Depth: | 5.33mm |
Features & Applications
Mill-Max Mfg. Corp. is the leading manufacturer of precision-machined interconnect components in North America. Their facility is capable of producing over 100 million pins and receptacles per week. Benefits of precision-machining:
• high reliability – 2 piece construction.
• gas tight seal – environmental conditions will not affect the integrity of the contact.
• multiple contact options – contacts can be interchanged to provide for higher or lower insertion force.
• multiple shell options.
• multiple plating options, both RoHS and standard.
• encapsulated contact area – solder can’t wick up into contact area.
• high number of insertion cycles.
• acceptance range between .084 to .102.
The 028401580168010 is a solder mount in .070 min mounting hole receptacleAvailable Packaging
Package Qty:
1000 per Box
