Manufacturer Part #

1651826-1

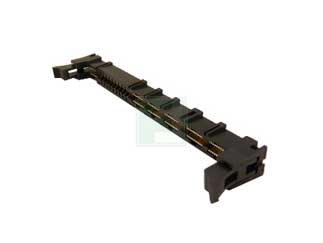

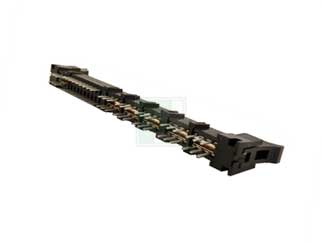

30 position 2.5 mm Pitch Through Hole Right Angle Receptacle Connector

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Technical Attributes
Attributes Table
No of Positions: 30
Pitch: 2.5 mm
Style/Orientation: Right Angle Socket/Receptacle
Termination: Solder
Type: Board to Board
Features & Applications

The 1651826-1 is a 30 position 2.5mm gold plated 250 V 25 A high current connectors.

Features:

  • Product Type Features:
    • Termination Method to PC Board = Through Hole - Solder
    • PCB Mounting Orientation = Vertical
  • Mechanical Attachment:
    • Number of Power Positions = 12
    • Mating Retention Type = Latching
  • Electrical Characteristics:
    • Contact - Rated Current (A) = 25
    • Operating Voltage (VAC) = 250
  • Termination Features:
    • Tail Length (mm [in]) = 4.5 [0.177]
    • Tail Orientation = Staggered
  • Dimensions:
    • Profile Height (Y-Axis) (mm [in]) = 20.00 [0.787]
  • Body Features:
    • Number of Positions = 30
    • Number of Signal Positions = 18
    • Centerline (mm [in]) = 2.50 [0.098]
    • Centerline, Power Contacts (mm [in]) = 9.70 [0.381]
    • Number of Rows = 2
    • Length (X-Axis) (mm [in]) = 114.96 [4.530]
    • Width (Z-Axis) (mm [in]) = 9.03 [0.3555]
    • Card Slot Depth (mm [in]) = 6.00 [0.236]
  • Contact Features:
    • Tail Plating Material = Matte Tin
    • Tail Plating, Thickness (µm [μin]) = 3.05 [120]
    • Contact Design = Multiple Contact Band/CROWN BAND
    • Contact Type = Socket
    • Contact Base Material = Copper Alloy
    • Contact Plating, Mating Area, Material = Gold
    • Contact Plating, Mating Area, Thickness (µm [μin]) = 0.762 [30]
  • Housing Features:
    • Connector Style = Receptacle
    • Mating Alignment Type = Blindmate, Blindmate/Keyed, Keyed
    • Housing Material = Thermoplastic
    • Housing Color = Black
    • UL Flammability Rating = UL 94V-0

View the available family of high current connectors

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
13 Weeks
Minimum Order:
96
Multiple Of:
32
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$700.80
USD
Quantity
Web Price
32
$7.57
64
$7.32
96
$7.30
128+
$7.28
