Manufacturer Part #
5177983-3

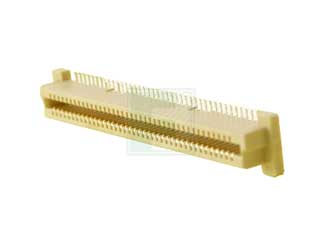

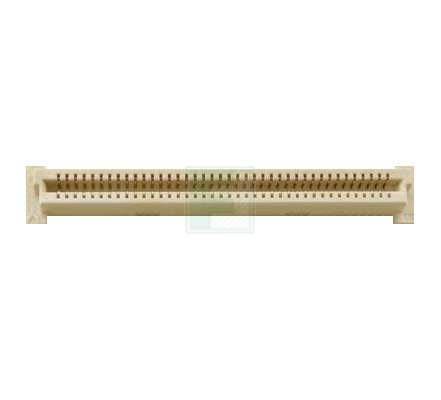

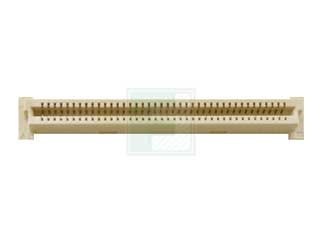

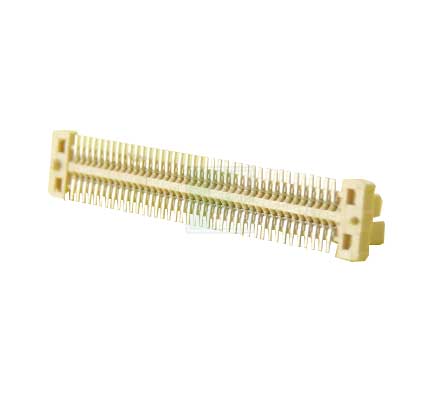

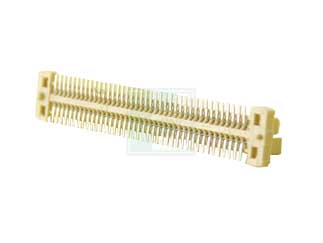

80 Position Dual Row 0.8 mm Pitch Vertical Board to Board Stacking Socket
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1800 per Tube | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 5177983-3 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Changes: We plan to transfer back existing assembly lines from a TE leased site in Qingdao high tech zone to TE s main campus in Qingdao for Data and Devices business unit. Target transfer schedule to be finished by the end of January 2024.Reason for Changes: To streamline TE's operating efficiencies and align manufacturing resources based on our internal footprint evaluation.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=5177983-3&field4=TE Connectivity&field18=https://p1apac.futureelectronics.com/p/interconnect--connectors-pcb--socket-plug-board-mount/5177983-3-te-connectivity-8969016
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=5177983-3&field4=TE Connectivity&field18=https://p1apac.futureelectronics.com/p/interconnect--connectors-pcb--socket-plug-board-mount/5177983-3-te-connectivity-8969016
Features & Applications
The 5177983-3 is a Series of Board to Board surface-mount connectors, designed for parallel board stacking applications using subminiature connectors to meet today’s electronic industry requirements for high density packaging
Product Features:
- Connector Style = Receptacle
- PCB Mounting Orientation = Vertical
- Board-to-Board Stack Height = 5.00 mm, 6.00 mm, 7.00 mm, 8.00 mm
- Gold (8) Contact Plating, Mating Area, Material
- Solder Tail Contact Plating = Tin over Nickel
- Contact Plating, Mating Area, Material = Gold (8)
- Family Name = Free Height
- Contact Base Material = Copper Alloy
- Housing Color = Natural
- Housing Material = Liquid Crystal Polymer (LCP)
- UL Flammability Rating = UL 94V-0
- Housing Material Temperature = High
View the Complete Series of Board to Board Receptacle
Available Packaging
Package Qty:
1800 per Tube
