Sullins | SFM210-LPSE-D25-SP-BK

Manufacturer Part #

SFM210-LPSE-D25-SP-BK

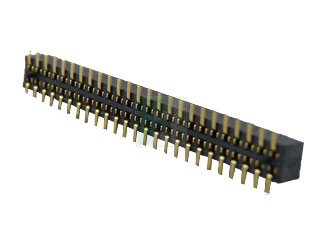

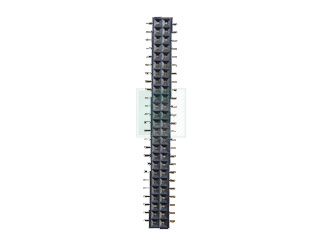

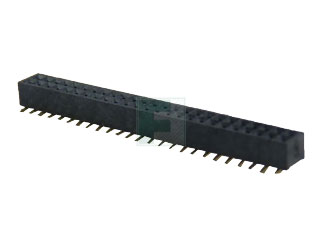

50 Position Total Dual Row 1 mm Pitch Surface Mount Guide Post Female Header

ECAD Model:
Mfr. Name: Sullins
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Sullins SFM210-LPSE-D25-SP-BK - Technical Attributes
Attributes Table
Mounting Method: Surface Mount
Features & Applications
The SFM210-LPSE-D25-SP-BK is a .039" Gold 2x5 Position (10 Pin) 2.10 mm Profile Surfacemount with post Female Header.

Features:

  • Female Header
  • Insulator height 2.10mm[.083”]
  • .000010” Gold Overall
  • 1 mm Dual Readout
  • 50 total contacts
  • Surface Mount With Guide Posts
  • Black

Specifications:

  • Female Header
  • Insulator Material: L.C.P,
  • UL 94V-0, Black color
  • Contact Material: Phosphor Bronze
  • Current Rating: 1 AMP
  • Insulator Resistance: 1000 Mega ohms min
  • Contact Resistance: 20 Milli ohms Max
  • Dielectric Withstandind: AC 300 V
  • Operating Temperature: -40° C TO +125° C
  • Processing Temp: 260° C for 10 Secs Max
  • Mates with male SMH Series

View the Complete Series of SFM210 Female Headers

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
1,573
Factory Lead Time:
8 Weeks
Minimum Order:
1003
Multiple Of:
59
Total
$7,071.15
USD
Quantity
Unit Price
59
$7.17
118
$7.13
177
$7.11
236
$7.10
295+
$7.05
