Manufacturer Part #
2-111196-1

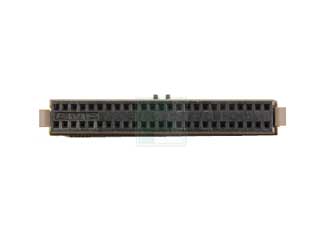

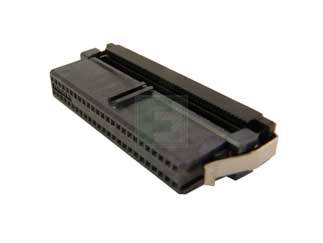

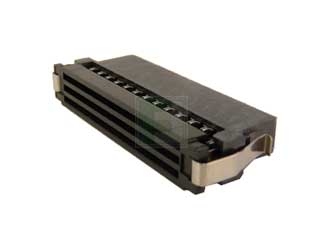

AMPMODU 50 Position 1.27 mm Dual Row Pitch Ribbon Cable IDC Receptacle
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:450 per Tray Mounting Method:Panel Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 2-111196-1 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2-111196-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--socket-plug-wire-mount/2-111196-1-te-connectivity-8805780
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2-111196-1&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--socket-plug-wire-mount/2-111196-1-te-connectivity-8805780
TE Connectivity 2-111196-1 - Technical Attributes
Attributes Table
| Type: | Cable to Board |
| No of Positions: | 50 |
| Pitch: | 1.27 mm |
| Style/Orientation: | Free Hanging Socket/Receptacle |
| Termination: | IDC |
| Mounting Method: | Panel Mount |
Features & Applications
The 2-111196-1 is a Part of AMPMODU Series with 50 Position Dual Row 1.27 mm Pitch Ribbon Cable IDC Receptacle.
Features:
- Type of Connector = Rectangular
- Connector Type = Connector Assembly
- Wire/Cable Type = Ribbon Cable
- Mating Connector Lock Type = Latch
- Voltage (VAC) = 30
- Insulation Resistance (M?) = 5,000
- Contact - Rated Current (A) = 0.5
- Solder Tail Contact Plating = Tin
- Number of Rows = Dual
- Ribbon Cable Centerline Spacing in mm = 0.64
- Latch Material = Stainless Steel
- Contact Base Material = Phosphor Bronze
- Contact Plating, Mating Area, Material = Gold
- Housing Color = Black
- Connector Style = Receptacle
- Housing Material = Thermoplastic - GF
- Applies To = Cable
- Temperature Range (°C) = -65 – +105
Mating Products:
- 147380-1
View the 2-111196x Series of AMPMODU Connectors
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
1
$11.72
4
$11.58
20
$11.41
40
$11.34
125+
$11.16
Product Variant Information section
Available Packaging
Package Qty:
450 per Tray
Mounting Method:
Panel Mount
