Manufacturer Part #
87456-6

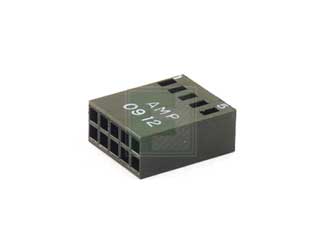

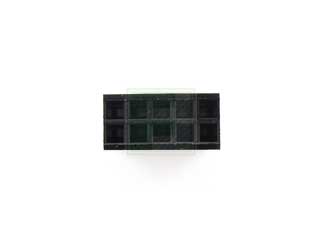

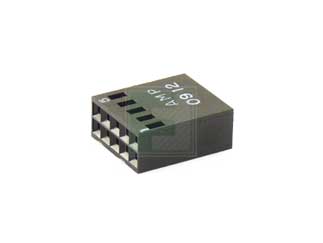

AMPMODU MOD IV 10 Position Dual Row 2.54 mm Pitch Crimp Unloaded Socket Housing
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:6000 per Bag | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 87456-6 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Changes:1. Please be aware the 108-25020 document have been updated to improve clarity, product speci cations for di erent pressure type contacts 108-25007 and 108-25021 is incorporated into one specification 108-25020. 2. There is a change in contact retention force- Before: contact retention force applied with 5 Lbs axial load. After: contact retention force Applied with 3 Lbs axial load. 3. The contact retention force has been adjusted from 5 lbs to 3 lbs (axial load). 4. Product performance (electrical / environmental) remain unchanged. 5. In the attached test report, PN 87922-4 was tested as a representative sample for the affected part numbers listed belowReason for Changes:1. Resin change to LCP in the MOD IV family 2. Standardizing product requirements similar to Product like MTE receptacle and short point contact receptacle.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=87456-6&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--socket-plug-wire-mount/87456-6-te-connectivity-2692846
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=87456-6&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-pcb--socket-plug-wire-mount/87456-6-te-connectivity-2692846
TE Connectivity 87456-6 - Technical Attributes
| Type: | Receptacle |
| No of Positions: | 10 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Free Hanging In-line |
| Termination: | Crimp |
Features & Applications
The 87456-6 is a AMPMODU 10 Position Dual Row 2.54 mm Pitch Crimp MOD IV Unloaded Socket Housing. These crimp snap-in receptacle contacts with insulation support will accept a wire size range of 32-20 AWG and mate with 0.64 mm [.025 in.] square or round posts.
Product Features:
- Product Type = Connector
- Connector Type = Housing
- Termination Method to Wire/Cable = Crimp
- Mating Connector Lock = Without
- Strain Relief = Without
- Connector Series = Mod IV
- Centerline (mm [in]) = 2.54 [0.100]
- Row-to-Row Spacing (mm [in]) = 2.54 [0.100]
- Number of Positions = 10
- Number of Rows = 2
- Connector Style = Receptacle
- Contact Type = Socket
- Contact - Rated Current (A) = 3
- Voltage Rating (VAC) = 250
- Termination Resistance (m?) = 12
- Operating Temperature = -65°C to +105°C
View the Complete Family of AMPMODU Socket Receptacles
Available Packaging
Package Qty:
6000 per Bag
