Manufacturer Part #
09200042711

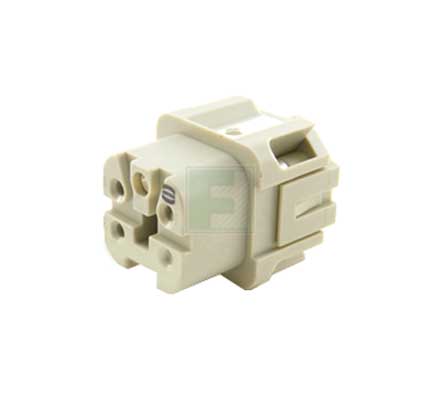

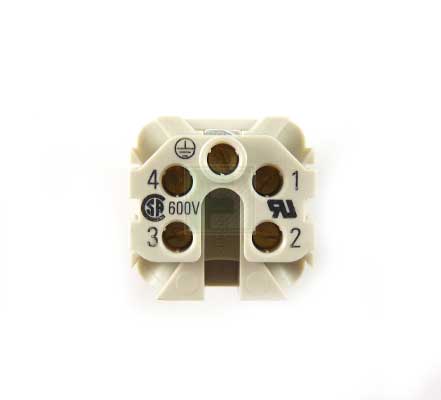

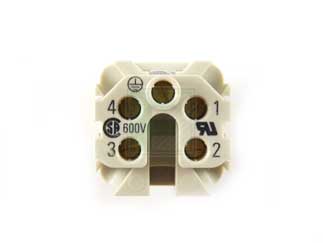

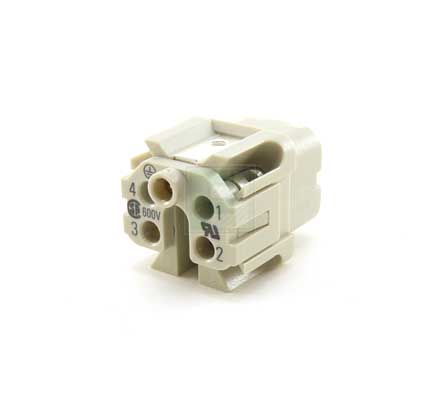

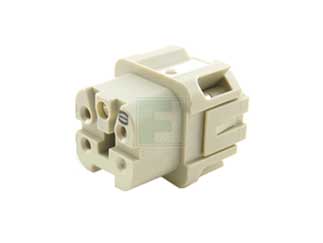

HAN A Series 3A Size 4 Position Ground 10 A Female Insert Power Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | HARTING | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:10 per Box | ||||||||||
| Date Code: | 2531 | ||||||||||
HARTING 09200042711 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=09200042711&field4=HARTING&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/09200042711-harting-8092231
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=09200042711&field4=HARTING&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/09200042711-harting-8092231
HARTING 09200042711 - Technical Attributes
| No of Positions: | 4 |
| Contact Termination: | Screw Terminal |
| Style/Orientation: | Receptacle Housing |
Features & Applications
The Harting Technology Group offers a wide range of interconnect solutions for Electrical, Electronics, Optical, Transmission and Networking applications.
The Harting series of HAN connectors has long been the defacto standard for Industrial Heavy Duty interconnect. If you or your equipment is subjected to harsh environmental conditions the HAN family of interconnect solutions should be at the top of your requirements.
HAN offers a superior contact housing, sealing and locking mechanism to protect your interconnect from external influences such as mechanical shock, foreign bodies, humidity, dust, water or other fluids such as cleansing and cooling agents, oils, etc.
The degree of protection offered by HAN product is explained in the datasheet (located in the download center).
HAN part number 09 20 004 2711 is a female insert for the Han 3 A series. The 09200042711 has a working current of 10A, voltage of 230/400 V, with a screw termination and allows for 4 poles + ground (PE).Available Packaging
Package Qty:
10 per Box
