Manufacturer Part #
5-103945-3

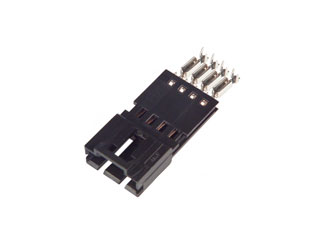

AMPMODU 4 Position Single Row 2.54 mm Pitch Pin Housing
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:528 per Tube |
||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 5-103945-3 - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
Mexico
HTS Code:
8536.69.40.40
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-103945-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/5-103945-3-te-connectivity-7102031
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=5-103945-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/5-103945-3-te-connectivity-7102031
TE Connectivity 5-103945-3 - Technical Attributes
Attributes Table
| No of Positions: | 4 |
| No of Rows: | 1 |
| Contact Termination: | Crimp Terminal |
| Pitch: | 2.54 mm |
| Style/Orientation: | Plug Housing |
| Termination: | Crimp |
| Operating Temp Range: | -65°C to +105°C |
| Voltage Rating: | 267V |
| Current Rating: | 3A |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Gold |
| Material: | Thermoplastic |
| Gender: | Male |
| Type: | Plug |
| Mating Type: | Latch Lock |
| Color: | Black |
| Insulation Resistance: | 5000MΩ |
Features & Applications
The 5-103945-3 is a AMPMODU CrimpType Pin Housing Connector with 4 Position and 2.54 mm Pitch.
Features:
- Product Type = Connector
- Connector Type = Housing
- Termination Method to Wire/Cable = Crimp, Insulation Displacement
- Contact - Rated Current (A) = 3
- Termination Resistance (m?) = 15
- Insulation Resistance (M?) = 5,000
- Row-to-Row Spacing (mm [in]) = 2.54 [0.100]
- Wire Range (mm [AWG]) = 0.12-0.40² [26-22]
- Contact Plating, Mating Area, Material = Gold (15)
- Contact Base Material = Phosphor Bronze
- Connector Style = Plug
- Centerline (mm [in]) = 2.54 [0.100]
- Mating Alignment Type = Latched
- Housing Color = Black
- UL Flammability Rating = UL 94V-0
- Housing Material = Thermoplastic - GF
- Number of Positions = 4
- Number of Rows = 1
- Operating Temperature (°C) = -65 – +105
- Applies To = Wire/Cable
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
22 Weeks
Quantity
Unit Price
528
$1.00
1,056
$0.985
1,584+
$0.965
