Manufacturer Part #
54483-2

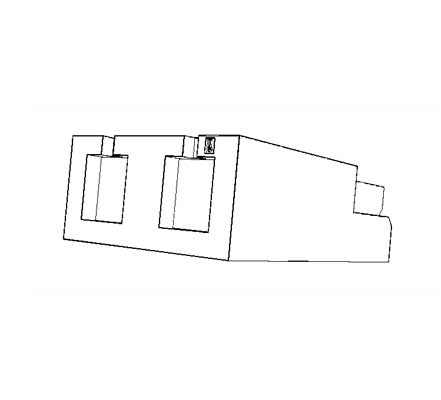

2 Position Hermaphroditic Plug - Receptacle Power Lock Connector
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:800 per Bag |
||||||||||
| Date Code: | |||||||||||
TE Connectivity 54483-2 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=54483-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/54483-2-te-connectivity-7256423
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=54483-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--connectors-rectangular-plastic-industrial/54483-2-te-connectivity-7256423
TE Connectivity 54483-2 - Technical Attributes
| No of Positions: | 2 |
| Contact Termination: | Hermaphroditic |
| Style/Orientation: | Plug - Receptacle |
| Material: | Nylon |
Features & Applications
The 54483-2 is a AMP Series I 2 Position Plug - Receptacle Power Lock Connector. AMP Power Lock Connectors have hermaphroditic housing and contact designs. The hermaphroditic housings are also modular in design and permit the clustering of connectors of the same series. Housings are made of impact resistant thermoplastic with stainless steel locking springs for contact stability.
Terminals are available in strip and loose piece form with a material choice of silver, or gold plated copper. Contacts for Series I Connectors accept a wire size range of 18-12 AWG and contacts for Series II Connectors accept a wire size range of 10-6 AWG. Both insert easily into housings where integral locking springs provide positive retention.
AMP Power Lock Connectors can be adapted to most high current applications and may be used as free-hanging, surface mounted and thru-panel mounted connectors, or when posted contacts are used, they can be used on printed circuits.
Product Type Features:
- Product Type = Housing
- Product Series = Series I
- Housing Style = Hermaphroditic
- Configuration = In-Line
- Number of Positions = 2
- Mounting Flange = Without
Available Packaging
Package Qty:
800 per Bag
