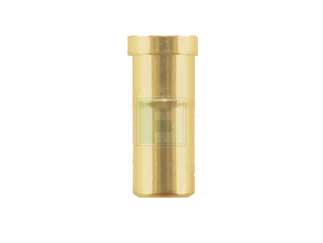

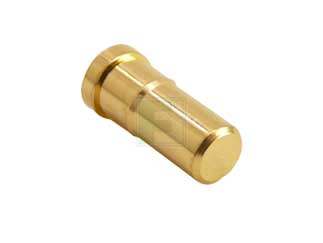

Mill-Max | 0434-0-15-15-03-27-10-0

Manufacturer Part #

0434-0-15-15-03-27-10-0

0434 Series Press Fit No Tail PC Pin Receptacle

ECAD Model:
Mfr. Name: Mill-Max
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Mill-Max 0434-0-15-15-03-27-10-0 - Technical Attributes
Attributes Table
Type: PC Pin Receptacle
Style: Press Fit
Termination Style/Mounting: Pin
Features & Applications

The 0434-0-15-15-03-27-10-0 is a part of 0434 Series Press Fit 0.106 Leads Range 0.040-0.060 Receptacle with no tail accept.

Features:

  • Contact Used: #03, Standard 4 Finger Contact
  • Current Rating = 11.2 Amps
  • Chemical composition: Cu 98.1%, Be 1.9%
  • Temper as stamped: TD01
  • Properties after heat treatment (TH01):
  • Hardness: 36-43 Rockwell C
  • Mechanical Life: 100 Cycles Min.
  • Density: .298 lbs/in3
  • Electrical Conductivity: 22% IACS*
  • Resistance: 10 miliohms Max
  • Operating Temperature: -55°C/+125°C
  • Melting point: 980°C/865°C (liquidus/solidus)

View the available 0434 series of Receptacles

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
5 Weeks
Minimum Order:
1000
Multiple Of:
1000
Total
$1,280.00
USD
Quantity
Unit Price
1,000+
$1.28
