Aries | 28-3518-10

Manufacturer Part #

28-3518-10

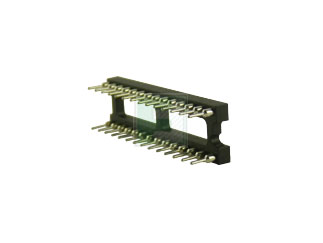

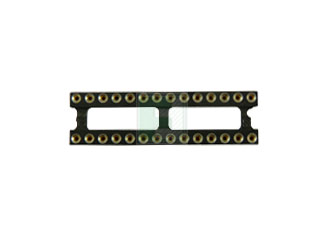

28 Position Open Frame Through Hole Collet Solder Tail Socket

ECAD Model:
Mfr. Name: Aries
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Aries 28-3518-10 - Technical Attributes
Attributes Table
Mounting Method: Through Hole
Features & Applications

The 28-3518-10 is a 28 Position Open Frame Collet Socket with Solder Pin Tails.

Features:

  • Open Frame allows efficient utilization of board space with optimized cooling
  • Choose from several pin styles
  • Compatible with automatic insertion equipment
  • Side-to-side and end-to-end stackable

Specifications:

  • Number of Rows:  2
  • Number of Positions / Contacts:  28
  • Contact Plating:  Gold
  • Mounting Style:  Through Hole
  • Termination Style:  Solder Tail
  • Socket / Case Type:  Open Frame
  • Operating Temperature Range:  - 55 C to + 125 C
  • Contact Material:  Brass Alloy
  • Contact Type:  Type D
  • Current Rating:  3 A
  • Flammability Rating:  UL 94 V-0
  • Housing Material:  Polyphenylene Sulfide (PPS)
  • Length:  35.56 mm
  • Row Spacing: 7.62 mm
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
2 Weeks
Minimum Order:
168
Multiple Of:
14
Total
$362.88
USD
Quantity
Unit Price
14
$2.23
56
$2.19
140
$2.16
350
$2.14
560+
$2.10
