ASSMANN WSW Components | A-CCS 032-Z-SM

Manufacturer Part #

A-CCS 032-Z-SM

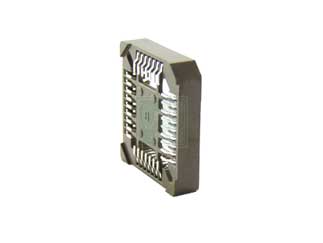

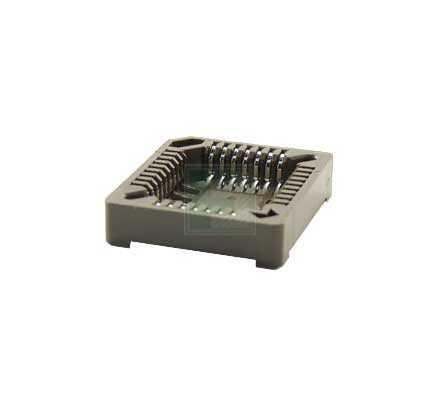

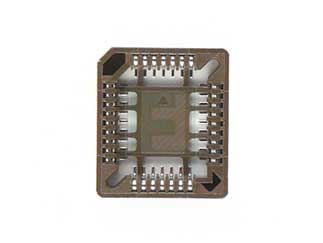

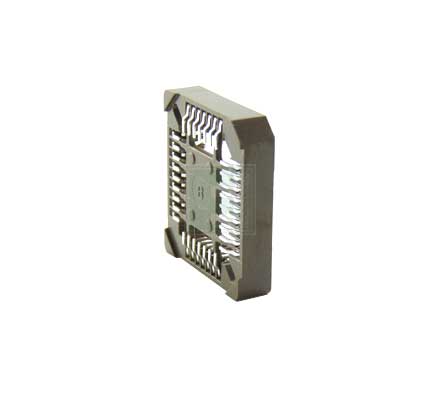

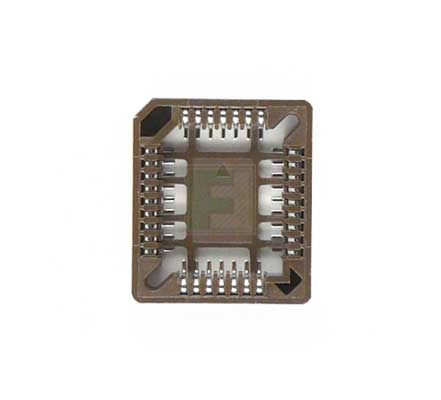

32 (2 x 7, 2 x 9) Position 1.27 mm Pitch Closed Frame SMT Tin PLCC Socket

ECAD Model:
Mfr. Name: ASSMANN WSW Components
Standard Pkg:
Product Variant Information section
Date Code: 2133
Product Specification Section
ASSMANN WSW Components A-CCS 032-Z-SM - Technical Attributes
Attributes Table
Mounting Method: Surface Mount
Features & Applications

The A-CCS32-Z-SM-R is a part of A-CCS series 32 pin 1.27 mm PLCC socket. It has an operating temperature ranging from -40°C to +105°C.

Features:

  • Insulator PPS, UL 94V-0
  • Current rating: 1 A
  • Dielectric withstanding voltage: AC 500 V for 1 minute
  • Insulating Resistance: 10000 MΩ
  • Withstanding Voltage 1000 V AC
  • Housing: PBT & 30% glass fiber
  • Contact Resistance: 15 mΩ
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
22 Weeks
Minimum Order:
3000
Multiple Of:
29
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$2,145.00
USD
Quantity
Unit Price
1
$0.815
30
$0.795
125
$0.77
300
$0.755
1,250+
$0.715
