Manufacturer Part #
324047

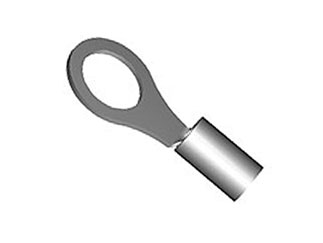

6 AWG 1/4 Stud Non-Insulated Straight Crimp Ring Tongue Terminal
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2000 per Box | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 324047 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=324047&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--crimp-terminals/324047-te-connectivity-2150142
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=324047&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--crimp-terminals/324047-te-connectivity-2150142
TE Connectivity 324047 - Technical Attributes
Attributes Table
| Size: | Stud 1/4" |
| Style: | Fully Insulated |
| Type: | Ring |
| Wire Gauge: | AWG 6 |
| Color: | Blue |
| Contact Material: | Copper |
| Contact Plating: | Tin |
| Gender: | Female |
| Operating Temp Range: | 105°C |
Features & Applications
The 324047 is a SOLISTRAND and Budget terminals and splices are specially designed to terminate solid and stranded wire, irregular shaped conductors, and combinations of these—retaining the superior performance characteristics of single-purpose terminals and splices.
Corrosion resistance, vibration resistance and tensile strength of these terminals and splices are well within the limits of commercial and military specifications.
Features:
- Product Type:
- Terminal Shape = Ring Tongue
- Receptacle Style = Straight
- Body Style = TERMINYL
- Barrel Type = Closed Barrel
- Wire/Cable Type = Regular Wire
- Insulation = Yes
- Insulation Support = Insulation Support
- Insulation Diameter (mm [in]) = 7.98 [.314] Max.
- Stud Diameter (mm [in]) = 6.35 [0.250]
- Stud Size = 1/4 [M6]
- Shape = RING-047
- Heavy Duty = No
- Material = Copper
- Finish = Tin
- Color = Blue
- Insulation Material = Nylon
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
N/A
Quantity
Unit Price
2,000+
$2.05
Product Variant Information section
Available Packaging
Package Qty:
2000 per Box
