Manufacturer Part #
324049

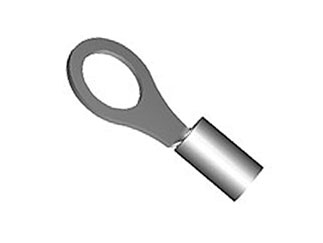

6 AWG 3/8 Stud Fully-Insulated Straight Crimp Ring Tongue Terminal
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:12000 per Box | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 324049 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=324049&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--crimp-terminals/324049-te-connectivity-C012938496
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=324049&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/interconnect--pin-and-socket-connectors--crimp-terminals/324049-te-connectivity-C012938496
TE Connectivity 324049 - Technical Attributes
Attributes Table
| Size: | Stud 3/8" |
| Style: | Fully Insulated |
| Type: | Ring |
| Wire Gauge: | AWG 6 |
Features & Applications
The 324049 is a SOLISTRAND and Budget terminals and splices are specially designed to terminate solid and stranded wire, irregular shaped conductors, and combinations of these—retaining the superior performance characteristics of single-purpose terminals and splices.
Corrosion resistance, vibration resistance and tensile strength of these terminals and splices are well within the limits of commercial and military specifications.
Features:
- Terminal Shape = Ring Tongue
- Receptacle Style = Straight
- Body Style = TERMINYL
- Barrel Type = Closed Barrel
- Wire/Cable Type = Regular Wire
- Insulation = Yes
- Insulation Support = Insulation Support
- Insulation Diameter (mm [in]) = 7.98 [.314] Max.
- Stud Diameter (mm [in]) = 9.53 [0.375]
- Stud Size = 3/8 [9.53]
- Shape = RING-047
- Heavy Duty = No
- Material = Copper
- Finish = Tin
- Color = Blue
- Insulation Material = Nylon
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Quantity
Unit Price
12,000+
$2.02
Product Variant Information section
Available Packaging
Package Qty:
12000 per Box
