TE Connectivity | 640417-2

Manufacturer Part #

640417-2

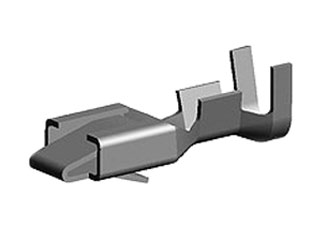

.250 Series 18-14 AWG Pre-Tin Blade/Receptacle Combination Terminal

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code: 2332
Product Specification Section
TE Connectivity 640417-2 - Technical Attributes
Attributes Table
Size: Tab 0.25"
Style: Non-Insulated
Type: Receptacle
Wire Gauge: AWG 18-14
Features & Applications

The 640417-2 is a Part of Fastin Faston Series, 18-14 AWG Pre-Tin Blade/Receptacle Combination Terminal

Primarily used as harness connectors, they make possible simultaneous and quick attachment of up to eight separate circuits with a maximum of 19 leads

Product Features:

  • Insulation Support = Insulation Support
  • Material = Brass
  • Finish = Pre-Tin
  • Product Series = .250
  • Insulation Diameter (mm [in]) = 3.90 [.154] Max
  • Terminal Style = Blade/Receptacle Combination
  • Wire Range (mm [AWG]) = 0.80-2.00² [18-14]
  • Double Wire = No

Pricing Section
Global Stock:
14,400
USA:
14,400
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
18 Weeks
Minimum Order:
2400
Multiple Of:
2400
Total
$183.60
USD
Quantity
Unit Price
2,400
$0.0765
4,800
$0.0751
7,200
$0.0743
9,600
$0.0738
12,000+
$0.072
