Wieland Electric | Z5.530.1025.0

Manufacturer Part #

Z5.530.1025.0

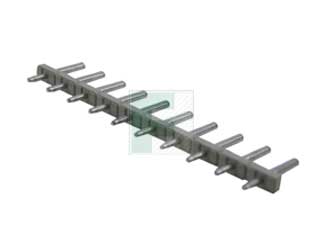

10 Position 5 mm Spacing Through Hole Straight Header Terminal Block

ECAD Model:
Mfr. Name: Wieland Electric
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Wieland Electric Z5.530.1025.0 - Technical Attributes
Attributes Table
No of Positions: 10
Pitch: 5 mm
Style/Orientation: Plug
Termination: Solder
Type: Board to Board
Features & Applications

The 25.346.3553.0 is a part of 8142 Series 5 mm pitch 10 position PCB stripped header  straight solder pin: 1,0 mm diameter grey colour suitable for pluggable terminal block.

Features:

  • Modular spacing: 5 mm
  • Soldering process: Wave soldering
  • Number of poles: 10
  • Number of levels: 1
  • Mating direction towards (circuit) board: 90°
  • Rated current: 8 A
  • Overvoltage Category I: 1000 V
  • Overvoltage Category II: 250 V
  • Overvoltage Category III: 200
  • Rated impulse voltage: 4 kV

View the Available Header Terminal Blocks

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
8 Weeks
Minimum Order:
100
Multiple Of:
50
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$82.50
USD
Quantity
Unit Price
1
$0.845
30
$0.825
125
$0.80
300
$0.78
1,250+
$0.74
