Manufacturer Part #
733-202

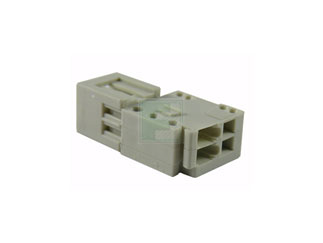

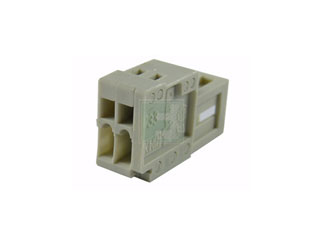

2 Position 2.5 mm Pitch 28-20 AWG Cage Clamp Male Connector Terminal Block
| | |||||||||||
| | |||||||||||
| Mfr. Name: | WAGO | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:200 per Bag | ||||||||||
| Date Code: | 2520 | ||||||||||
Product Specification Section
WAGO 733-202 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=733-202&field4=WAGO&field18=https://p1na.futureelectronics.com/p/interconnect--terminal-blocks-barrier-strips--euro-style/733-202-wago-3017995
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=733-202&field4=WAGO&field18=https://p1na.futureelectronics.com/p/interconnect--terminal-blocks-barrier-strips--euro-style/733-202-wago-3017995
WAGO 733-202 - Technical Attributes
Attributes Table
| Type: | Terminal Block |
| No of Poles: | 2 |
| No of Rows: | 1 |
| Wire Gauge: | AWG 28-20 |
| Termination: | Cage Clamp |
| Style: | Multi Connect |
| Pitch: | 2.5 mm |
| Gender: | Male |
| Color: | Grey |
| Contact Plating: | Tin |
| Current Rating: | 6A |
| Voltage Rating: | 320V |
| Operating Temp Range: | -60°C to +100°C |
Features & Applications
The 733-202 is a 2 Position 2.5 mm Pitch Pin Spacing 28-20 AWG Cage Clamp Male Connector Terminal Block
Product Specifications:
- Weight 1.2 g
- Color light grey
- No. of connection Points 2
- No. of potentials 2
- pole count 2
- Pin spacing from 2.5 mm
- Pin spacing from 0.098 in
- Rating based on IEC/EN 60664-1
- Overvoltage category EN I III
- Pollution degree 2
- Measured voltage EN 160 V
- Measured shock voltage 2.5 kV
- Current intensity EN 6 A
- Overvoltage category EN II II
- Pollution degree 2
- Measured voltage EN 320 V
- Measured shock voltage 2.5 kV
- Current intensity EN 6 A
- Overvoltage category EN III III
- Degree of pollution 3
- Rated voltage EN 100 V
- Rated surge voltage 2.5 kV
- Nominal current 6 A
- Connection method CAGE CLAMP®CONNECTION
- Clamping spring material Nickel-chromium spring steel (CrNi)
- Contact material Electrolytic copper (Ecu)
- Contact plating tin-plated
Pricing Section
Global Stock:
100
USA:
100
On Order:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
200
$2.43
400
$2.41
600
$2.40
800+
$2.38
Product Variant Information section
Available Packaging
Package Qty:
200 per Bag
