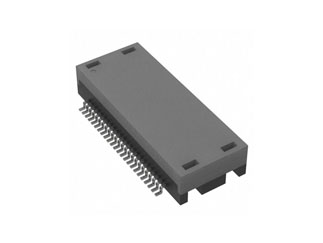

TE Connectivity | 2337824-2

Manufacturer Part #

2337824-2

100 MHz 350 uH 1.5 kV SMT 10/100 Dual Discrete Ethernet Magnetic

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 2337824-2 - Technical Attributes
Attributes Table
Inductance-Nom: 350µH
Configuration: Dual
Rated Current: 8mA
Rated Voltage: 1.5kV
Test Frequency: 100MHz
Operating Temp Range: -40°C to +105°C
No of Terminals: 8
Type: Signal Line
Mounting Method: Surface Mount
Features & Applications

Industrial discrete magnetics products from TE Connectivity (TE) provide flexibility to designers of equipment that includes embedded Ethernet interfaces, enabling them to realize improved transmission characteristics and meet over-voltage requirements.

APPLICATIONS
• Programmable logic controllers
• I/O modules
• Servo drives
• Industrial PCs
• Other industrial equipment

FEATURES
• 1,500V ACrms dielectric withstanding
• Supports voltage- or current-mode applications
• Three-wire choke for Power-over-Ethernet interfaces
• Compatible with reflow soldering profiles at 260°C
• Supplied in surface-mount and optional through-hole packages

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
15 Weeks
Minimum Order:
350
Multiple Of:
350
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$1,949.50
USD
Quantity
Unit Price
350+
$5.57
