Manufacturer Part #
NUF6401MNT1G

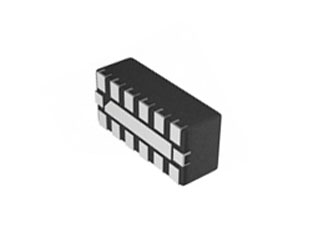

NUF6401MN Series 6 Channel EMI Filter w/ ESD Protection - DFN-12
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:DFN-12 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi NUF6401MNT1G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NUF6401MNT1G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/passives--filters--emi-filters/nuf6401mnt1g-onsemi-8001321
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NUF6401MNT1G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/passives--filters--emi-filters/nuf6401mnt1g-onsemi-8001321
onsemi NUF6401MNT1G - Technical Attributes
Attributes Table
| Rated Current: | 1mA |
| DC Resistance-Max: | 115Ω |
| Type: | Other |
| Package Style: | DFN-12 |
| Mounting Method: | Surface Mount |
Features & Applications
This Device is a 6 Line EMI Filter array for wireless applications. Greater than -30 dB attenuation is obtained at frequencies from 800 MHz to 3.0 GHz. It also offers ESD protection, clamping transients from static discharges. ESD protection is provided across all capacitors.
Features:
- EMI Filtering and ESD Protection
- Integration of 30 Discrete Components
- ESD Ratings: IEC61000-4-2 (Level 4), Machine Model = C, Human Body Model = 3 B
- DFN Package, 1.35 x 3.0 mm
- Moisture Sensitivity Level 1
- ESD Ratings: Machine Model = C and Human Body Model = 3B
- This is a Pb-Free Device
Applications:
- EMI Filtering and ESD Protection for Data Lines
- Wireless Phones
- PDAs and Handheld Products
- Notebook Computers
- LCD Displays
Learn more about the NUF640 family of EMI Filters
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
7 Weeks
Quantity
Unit Price
3,000
$0.149
6,000
$0.147
9,000
$0.146
15,000+
$0.143
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
DFN-12
Mounting Method:
Surface Mount
