Manufacturer Part #
PAM8302AADCR

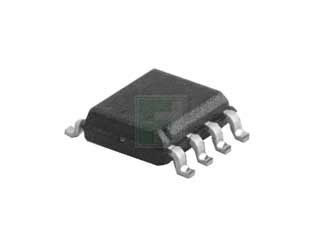

PAM8302A Series 5.5 V 2.5 W Filterless Class-D Mono Audio Amplifier - SOIC-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Diodes Incorporated | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:SOIC-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Diodes Incorporated PAM8302AADCR - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
Diodes Incorporated PAM8302AADCR - Technical Attributes
Attributes Table
| Type: | Class D |
| No of Channels: | 1 |
| Output Type: | Mono |
| Gain: | 24dB |
| Supply Voltage-Max: | 5.5V |
| Output Power: | 2.5W |
| Signal-to-Ratio-Nom: | 80dB |
| Output Impedance: | 4Ω |
| Operating Temp Range: | -40°C to +85°C |
| Power Supply Rejection Ratio: | 50dB |
| Total Harmonic Distortion: | 0.4% |
| Package Style: | SOIC-8 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
2,500
$0.205
5,000
$0.20
10,000
$0.199
12,500+
$0.196
Product Variant Information section
Available Packaging
Package Qty:
2500 per Reel
Package Style:
SOIC-8
Mounting Method:
Surface Mount
