Manufacturer Part #
TSC199A3IQT
Current Sense Amplifiers
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Package Style:QFN-10 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2348 | ||||||||||
Product Specification Section
STMicroelectronics TSC199A3IQT - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TSC199A3IQT&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--amplifiers--general-purpose/tsc199a3iqt-stmicroelectronics-8203856
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=TSC199A3IQT&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--amplifiers--general-purpose/tsc199a3iqt-stmicroelectronics-8203856
STMicroelectronics TSC199A3IQT - Technical Attributes
Attributes Table
| Amplifier Type: | Current Sense |
| No of Channels: | 1 |
| 3dB Bandwidth-Min: | 25kHz |
| Slew Rate-Nom: | 0.2V/µs |
| Input Offset Voltage-Max: | 150µV |
| Average Bias Current-Max: | 28µA |
| Supply Voltage: | 2.7V to 26V |
| Common Mode Rejection Ratio: | 120dB |
| Supply Current: | 65µA |
| Output Type: | Voltage |
| Operating Temp Range: | -40°C to +125°C |
| DC Voltage Gain: | 46.02dB |
| Low Noise: | 40nV/√Hz |
| Moisture Sensitivity Level: | 1 |

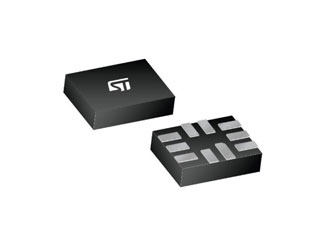

| Package Style: | QFN-10 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
200
USA:
200
Product Variant Information section
Available Packaging
Package Qty:
3000 per
Package Style:
QFN-10
Mounting Method:
Surface Mount
