Manufacturer Part #
MIC4420ZM

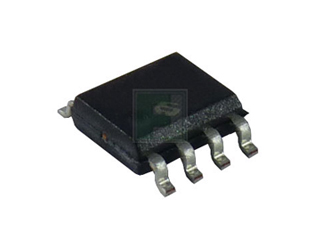

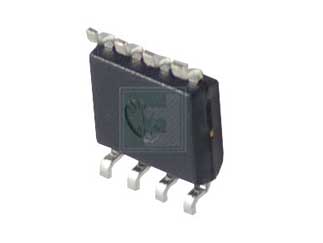

MIC4420 Series 2.5 Ohm 6 A Surface Mount Peak Low-Side MOSFET Driver - SOIC-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:95 per Tube Package Style:SOIC-8 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Microchip MIC4420ZM - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Change: Qualification of MTAI as an additional final test site for MIC4420YM, MIC4420YM-TR, MIC4420ZM and MIC4420ZM-TR catalog part numbers (CPN) available in 8L SOIC (.150in) package.Reason for Change: To improve manufacturability and on time delivery performance by qualifying MTAI as an additional final test site and scan and pack site.Estimated Qualification Completion Date: February 2026
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MIC4420ZM&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--mosfet-igbt-drivers/mic4420zm-microchip-3109977
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MIC4420ZM&field4=Microchip&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--drivers--mosfet-igbt-drivers/mic4420zm-microchip-3109977
Microchip MIC4420ZM - Technical Attributes
| Configuration: | Low Side |
| No of Outputs: | Single |
| Output Impedance: | 1.7Ω |
| Peak Output Current: | 6A |
| Supply Voltage-Max: | 18V |
| Rated Power Dissipation: | 1.04W |
| Quiescent Current: | 0.45mA |
| Turn-off Delay Time: | 65ns |
| Turn-on Delay Time: | 50ns |
| Rise Time: | 12ns |
| Fall Time: | 13ns |
| Operating Temp Range: | 0°C to 70°C |
| Package Style: | SOIC-8 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
95 per Tube
Package Style:
SOIC-8
Mounting Method:
Surface Mount
