onsemi | NCP156AAFCT120280T2G

Manufacturer Part #

NCP156AAFCT120280T2G

Dual LDO Regulator for Camera Modules, 500/250 mA,Low Iq, Very Low Dropout, Ult

ECAD Model:
Mfr. Name: onsemi
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
onsemi NCP156AAFCT120280T2G - Technical Attributes
Attributes Table
Input Voltage-Max: 5.5V
Output Voltage Fixed: 1.2, 2.8V
Dropout Voltage-Max: 1.5V
Output Current-Max: 500250mA
Tolerance (%): ±1%
Operating Temp Range: -40°C to +125°C
Regulator Topology: Fixed
Quiescent Current: 1080µA
No. of Outputs: 2
Load Regulation: 5mV
Current - Limit: 850550mA

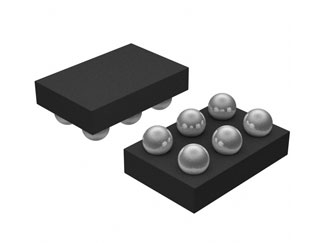

Package Style:  WLCSP-6
Mounting Method: Surface Mount
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
165,000
Factory Lead Time:
20 Weeks
Minimum Order:
5000
Multiple Of:
5000
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$980.00
USD
Quantity
Unit Price
5,000
$0.196
10,000
$0.193
15,000
$0.192
20,000+
$0.19
