Manufacturer Part #
ST1PS02BQTR
400mA Nano-Quiescent Synchronous step-down converter with digital voltage select
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Reel Package Style:TQFN-12 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
STMicroelectronics ST1PS02BQTR - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ST1PS02BQTR&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--regulators-reference--switching-regulators/st1ps02bqtr-stmicroelectronics-8162512
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ST1PS02BQTR&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/semiconductors--analog--regulators-reference--switching-regulators/st1ps02bqtr-stmicroelectronics-8162512
STMicroelectronics ST1PS02BQTR - Technical Attributes
Attributes Table
| Topology: | Buck |
| Input Voltage: | 1.8V to 5.5V |
| Output Current-Max: | 400mA |
| Output Voltage Range: | 1V to 3.3V |
| Output Type: | Adjustable |
| Switching Frequency-Max: | 2MHz |
| Operating Temp Range: | -40°C to +85°C |
| Duty Cycle-Max: | 100% |
| Efficiency: | 95% |
| No. of Outputs: | 1 |
| Quiescent Current: | 0.5µA |
| Storage Temperature Range: | -55°C to +150°C |
| Moisture Sensitivity Level: | 1 |
| Product Status: | Active |

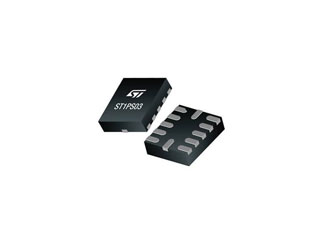

| Package Style: | TQFN-12 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
20 Weeks
Quantity
Unit Price
3,000+
$0.69
Product Variant Information section
Available Packaging
Package Qty:
3000 per Reel
Package Style:
TQFN-12
Mounting Method:
Surface Mount
