VN101501

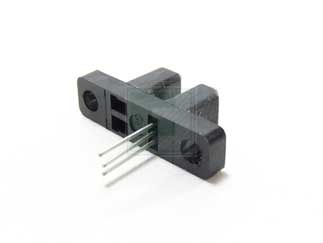

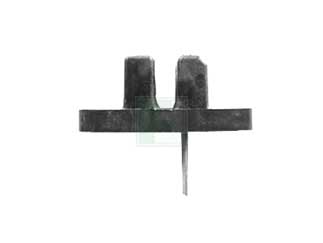

VN Series 24 V 6 mA Digital Vane Sensor with Three Pins

ECAD Model:
Mfr. Name: ZF Electronics
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Technical Attributes
Attributes Table
Type: Magnetic
Supply Voltage: 4.5V to 24V
Supply Current: 6mA
Features & Applications

The VN101501 is a magnetically activated digital vane sensor in a rugged, over molded plastic housing with three pins or 3 wire leads.

Features:

  • Available in two operating temperature ranges.
  • Immune to moisture and dust
  • Reliable and repeatable
  • No mechanical contacts to wear out
  • Reverse battery protection to -24VDC
  • Sensor body material: Glass filled polyester
  • Open collector (sinking or NPN) output can be used with bipolar or cmos logic circuits with suitable pull-up resistor.
  • Recommended vane parameters: low carbon coldrolled steel at least 0.040” thick and 0.250” wide should penetrate to a depth <0.120” from bottom of sensor slot
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
1000
Multiple Of:
25
Total
$4,440.00
USD
Quantity
Web Price
25
$5.55
75
$4.72
100
$4.67
250
$4.51
375+
$4.44
