Manufacturer Part #

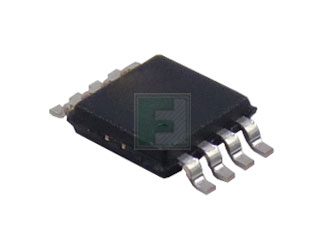

MIC284-3YMM

MIC284 Series 5.5 V Surface Mount Two-Zone Thermal Supervisor - MSOP-8

ECAD Model:
Mfr. Name: Microchip
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Technical Attributes
Attributes Table
Output Type: Digital
Supply Voltage: 2.7V to 5.5V
Operating Temp Range: -55°C to +125°C
Package Style:  MSOP-8
Mounting Method: Surface Mount
Features & Applications

The MIC284 is a versatile digital thermal supervisor capable of measuring temperature using its own internal sensor and an inexpensive external sensor or embedded silicon diode such as those found in the Intel Pentium III™ CPU. A 2-wire serial interface is provided to allow communication with either I2C™ or SMBus™ masters. Features include an open-drain over temperature output with dedicated registers for implementing fan control or over-temperature shutdown circuits.

Features:

  • Optimized for CPU Thermal Supervision in Computing Applications
  • Measures Local and Remote Temperature
  • Sigma-Delta ADC for 8-Bit Temperature Results
  • 2-Wire SMBus-compatible Interface
  • Programmable Thermostat Settings for both Internal and External Zones
  • Open-Drain Interrupt Output Pin
  • Open-Drain Over Temperature Output Pin for Fan Control or Hardware Shutdown
  • Interrupt Mask and Status Bits
  • Low Power Shutdown Mode
  • Failsafe response to diode faults
  • 2.7 V to 5.5 V Power Supply Range
  • 8-Lead SOIC and MSOP Packages

Applications:

  • Desktop, Server and Notebook Computers
  • Power Supplies
  • Test and Measurement Equipment
  • Wireless Systems
  • Networking/Datacom Hardware
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
900
Multiple Of:
100
Total
$886.50
USD
Quantity
Web Price
100
$1.18
300
$1.00
500
$0.985
1,000
$0.965
2,000+
$0.945
