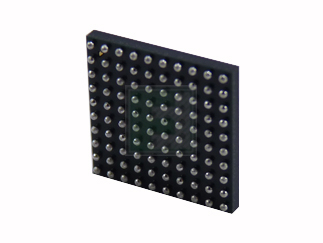

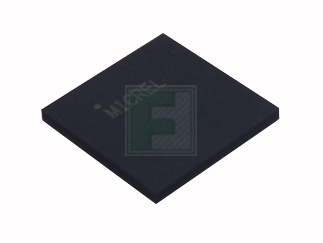

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

KSZ8893MBL-TR

3.5 V Integrated 3-Port 10/100 Managed Switch with PHYs - LFBGA-100

KSZ8893MBL-TR Datasheet KSZ8893MBL-TR Documentation Product Brief
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Microchip
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 1000 per Reel Package Style: LFBGA-100 Mounting Method: Surface Mount
Date Code:

Microchip KSZ8893MBL-TR - Technical Attributes

Supply Voltage-Nom:	3.1V to 3.5V
No of Functions / Channels:	3
Interface Type:	RMII/MII/SNI
Package Style:	LFBGA-100
Mounting Method:	Surface Mount

Features & Applications

The KSZ8893MQL TR is a highly integrated layer 2 managed switch, is designed for low port count, cost-sensitive 10/100 Mbps switch systems. It offers an extensive feature set that includes rate limiting, tag/port-based VLAN, QoS priority, management, management information base (MIB) counters, RMII/MII/SNI, and CPU control/data interfaces to effectively address both current and emerging Fast Ethernet applications.

The KSZ8893MQL/MBL contains two 10/100 transceivers with patented mixed-signal low-power technology, three media access control (MAC) units, a highspeed non-blocking switch fabric, a dedicated address lookup engine, and an on-chip frame buffer memory.

Features:

Proven Integrated 3-Port 10/100 Ethernet Switch
- 3rd generation switch with three MACs and two PHYs fully compliant with IEEE 802.3u standard
Comprehensive Configuration Register Access
- Serial management interface (SMI) to all internal registers
QoS/CoS Packet Prioritization Support
- Per port, 802.1p and DiffServ-based
Low Latency Support
- Repeater mode
Switch Monitoring Features
- Port mirroring/monitoring/sniffing: ingress and/or egress traffic to any port or MII
- MIB counters for fully compliant statistics gathering, 34 MIB counters per port
Low Power Dissipation:
- Full-chip hardware power-down

Applications:

Typical
- Media Converter
- FTTx customer premises equipment
- VoIP Phone
- SOHO Residential Gateway
- Broadband Gateway / Firewall / VPN
- Integrated DSL/Cable Modem
Upgradeable(1)
- Unmanaged switch with future option to migrate to a managed solution
Industrial
- Applications requiring port redundancy and port monitoring
