Manufacturer Part #
DF04M

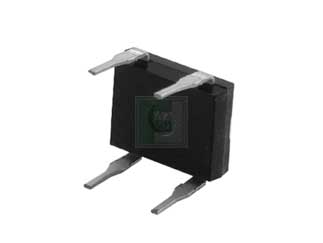

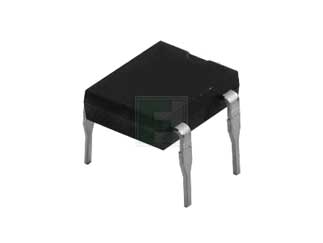

DF04M Series 1.5 A 400 V 5 uA Through Hole Bridge Rectifier - DFM-4
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:5000 per Tube Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
onsemi DF04M - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Change (From) : SDIP/DIP packages under the following assembly sites using non green mold compound and SDIP package only qualified with IR reflow precondition.Description of Change (To) :Products assembled in the SDIP/DIP packages using the green Mold Compound and SDIP package had been qualified with both IR reflow and wave soldering precondition.Reason for Change:This is a change to mold compounds used for Fairchild products assembled in SDIP/DIP packages and the package SDIP has been successfully qualified with wave soldering precondition. The qualified green Mold Compounds are low halogen material with improved thermal & mechanical properties.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=DF04M&field4=onsemi&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--diodes--bridge-rectifiers/df04m-onsemi-3305323
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=DF04M&field4=onsemi&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--diodes--bridge-rectifiers/df04m-onsemi-3305323
onsemi DF04M - Technical Attributes
| Average Rectified Current-Max: | 1.5A |
| Reverse Voltage-Max [Vrrm]: | 400V |
| Peak Current-Max: | 50A |
| Reverse Current-Max: | 5µA |
| Forward Voltage: | 1.1V |
| Mounting Method: | Through Hole |
Features & Applications
The DF04M is a 1.5 A, 400 V and Through Hole Bridge Rectifier.
Features:
- Surge overload rating: 50 amperes peak
- Glass passivated junction
- Low leakage
- UL certified, UL #E111753 and E326243
Applications:
- Routers & LAN Switches
- Home Audio System Components
- Graphic Card
- LCD Monitor
Available Packaging
Package Qty:
5000 per Tube
Mounting Method:
Through Hole
