Manufacturer Part #
NSR02F30NXT5G

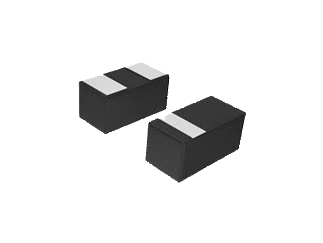

NSR Series 0201 30 V 200 mA Surface Mount Schottky Diode
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:5000 per Reel | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi NSR02F30NXT5G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=NSR02F30NXT5G&field4=onsemi&field18=https://p1apac.futureelectronics.com/p/semiconductors--discretes--diodes--schottky-diodes/nsr02f30nxt5g-on-semiconductor-8020482
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=NSR02F30NXT5G&field4=onsemi&field18=https://p1apac.futureelectronics.com/p/semiconductors--discretes--diodes--schottky-diodes/nsr02f30nxt5g-on-semiconductor-8020482
onsemi NSR02F30NXT5G - Technical Attributes
Attributes Table
| Average Rectified Current-Max: | 200mA |
| Peak Current-Max: | 4A |
| Reverse Voltage-Max [Vrrm]: | 30V |
| Reverse Current-Max: | 50µA |
| Forward Voltage: | 0.55V |
| Diode Capacitance-Max: | 7pF |
| Thermal Resistance: | 400°C/W |
| Operating Temp Range: | -40°C to +125°C |
| Leakage Current: | 50µA |
| Power Dissipation: | 735mW |
| Configuration: | Single |
Pricing Section
Global Stock:
0
Singapore:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
5,000
$0.096
10,000
$0.0944
15,000
$0.0935
20,000
$0.0929
25,000+
$0.0908
Product Variant Information section
Available Packaging
Package Qty:
5000 per Reel
