Manufacturer Part #
NSR20F30NXT5G

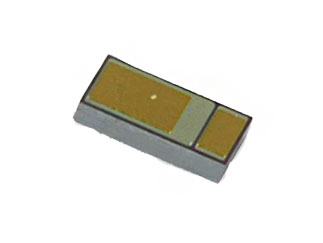

NSR20F30NXT5G Series 30 V 2 A Surface Mount Schottky Barrier Diode - DSN2
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:5000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
onsemi NSR20F30NXT5G - Product Specification
Shipping Information:
ECCN:
PCN Information:
Tape and Reel Carrier Tape Change for Die Sales.ON Semiconductor is announcing a change in carrier tape used for a selection of die sales devices as part of on-going quality improvement actions. Change of the pocket size for certain devices to ensure proper fit of the die inside the pocket to provide safe transport. The change will ensure there is no unnecessary movement (rotation, die flipping) or risk of mechanical damage due to impact with the die during sealing.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NSR20F30NXT5G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--diodes--schottky-diodes/nsr20f30nxt5g-onsemi-9004902
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NSR20F30NXT5G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--diodes--schottky-diodes/nsr20f30nxt5g-onsemi-9004902
onsemi NSR20F30NXT5G - Technical Attributes
| Average Rectified Current-Max: | 2A |
| Peak Current-Max: | 28A |
| Reverse Voltage-Max [Vrrm]: | 30V |
| Reverse Current-Max: | 150µA |
| Forward Voltage: | 0.48V |
| Power Dissipation: | 586mW |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
5000 per Reel
Mounting Method:
Surface Mount
