Manufacturer Part #
FF450R33T3E3BPSA1

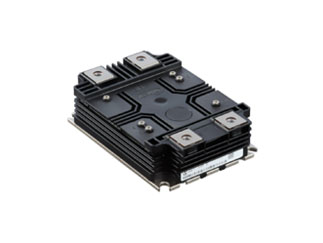

3300 V, 450 A XHP™ 3 dual IGBT module
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Infineon | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Bulk Package Style:Module Mounting Method:Chassis Mount | ||||||||||
| Date Code: | |||||||||||
Infineon FF450R33T3E3BPSA1 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Subject The isolation test duration of all affected products will be unified to 60 s.Reason:Based on the IEC 62497-1:2010 (Railway applications - Insulation coordination - Part1: Basic requirements - Clearances and creepage distances for all electrical and electronic equipment), a test duration of 10 sec is required.Based on UL 1557 (Standard for Safety, Electrically Isolated Semiconductor Devices, 6th Edition), a dielectric voltagewithst and test of either 1sec or 60sec is required.In order to harmonize test durations, all modules will undergo an isolation test with 60sec duration.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=FF450R33T3E3BPSA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--igbts/ff450r33t3e3bpsa1-infineon-9119586
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=FF450R33T3E3BPSA1&field4=Infineon&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--igbts/ff450r33t3e3bpsa1-infineon-9119586
Infineon FF450R33T3E3BPSA1 - Technical Attributes
| CE Voltage-Max: | 3300V |
| Gate - Emitter Voltage: | ±20V |
| Pulsed Collector Current: | 900A |
| Collector - Emitter Saturation Voltage: | 2.5V |
| Turn-on Delay Time: | 0.53µs |
| Turn-off Delay Time: | 1.71µs |
| Qg Gate Charge: | 12500nC |
| Leakage Current: | 400nA |
| Input Capacitance: | 84nF |
| Operating Temp Range: | -40°C to +150°C |
| No of Terminals: | 10 |
| Package Style: | Module |
| Mounting Method: | Chassis Mount |
Available Packaging
Package Qty:
1 per Bulk
Package Style:
Module
Mounting Method:
Chassis Mount
