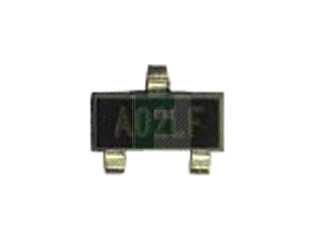

Calogic | SST202-LF

Manufacturer Part #

SST202-LF

SST202 Series N-Channel 40 V 50 mA JFET General Purpose Amplifier - SOT-23

ECAD Model:
Mfr. Name: Calogic
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Calogic SST202-LF - Technical Attributes
Attributes Table
Fet Type: N-Ch
Gate-Source Voltage-Max [Vgss]: 40V
Drain Current: 50mA
Drain-to-Source Voltage [Vdss]: 20V
Package Style:  SOT-23 (SC-59,TO-236)
Mounting Method: Surface Mount
Features & Applications
The SST202 is a 40 V 50 mA General Purpose Amplifier N-Channel JFET Available in a SOT-23 package. It has an Operating Temperature ranging between -55 °C to +135 °C .

Product Features:

  • High Input Impedance
  • Low IGSS
  • Operating Temperature Ranging from -55 °C to +135 °C
  • Power Dissipation 360 mW
  • Gate Current 50 mA



Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
2500
Multiple Of:
2500
Total
$1,262.50
USD
Quantity
Unit Price
2,500+
$0.505
