Manufacturer Part #
NTB082N65S3F

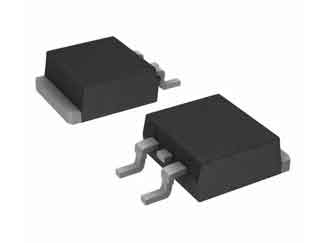

N-Channel 650 V 40 A 313 W Surface Mount SUPERFET III MOSFET - TO-263
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:800 per Reel Package Style:TO-263-3 (D2PAK) Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
onsemi NTB082N65S3F - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NTB082N65S3F&field4=onsemi&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/ntb082n65s3f-onsemi-6111232
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=NTB082N65S3F&field4=onsemi&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/ntb082n65s3f-onsemi-6111232
onsemi NTB082N65S3F - Technical Attributes
Attributes Table
| Fet Type: | N-Ch |
| No of Channels: | 1 |
| Drain-to-Source Voltage [Vdss]: | 650V |
| Drain-Source On Resistance-Max: | 82mΩ |
| Rated Power Dissipation: | 313W |
| Qg Gate Charge: | 81nC |
| Gate-Source Voltage-Max [Vgss]: | 30V |
| Drain Current: | 40A |
| Turn-on Delay Time: | 27ns |
| Turn-off Delay Time: | 79ns |
| Rise Time: | 27ns |
| Fall Time: | 5ns |
| Operating Temp Range: | -55°C to +150°C |
| Gate Source Threshold: | 5V |
| Input Capacitance: | 3410pF |
| Package Style: | TO-263-3 (D2PAK) |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
17 Weeks
Quantity
Unit Price
800+
$5.08
Product Variant Information section
Available Packaging
Package Qty:
800 per Reel
Package Style:
TO-263-3 (D2PAK)
Mounting Method:
Surface Mount
