Manufacturer Part #
SIJ462ADP-T1-GE3

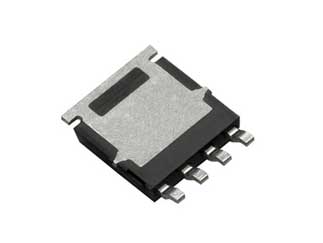

N-Channel 60-V (D-S) MOSFET PowerPAK SO-8L
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Vishay | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:3000 per Cut Tape Package Style:POWERPAK-SO-8L Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Vishay SIJ462ADP-T1-GE3 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Change: To meet increasing demand with more flexibility for power MOSFETs, Vishay Siliconix announces the qualification of the new solder-plating site, Welnew-Shanghai, in Shanghai city, China. This full release of Welnew-Shnaghai applies to commercial product packages with copper lead-frame assembled in Simconix in Shanghai.Reason for Change: Manufacturing Capacity Expansion
Description of Change: .To meet increasing demand with more flexibility for power MOSFETs, Vishay Siliconix announces the qualification of the new solder-plating site, Welnew-Shanghai, in Shanghai city, China. This full release of Welnew-Shnaghai applies to commercial product packages with copper lead-frame assembled in Simconix in Shanghai.Welnew-Shanghai was founded in 2006 as a leading provider of Hall sensor products, semiconductor process service, and equipments.Welnew-Shanghai has achieved the certifications, including IATF-16949, ISO-9001, and ISO-14001.Reason for Change: Manufacturing Capacity Expansion
Description of Change: To continue the supply of target commercial power MOSFETs, Vishay Siliconix announces the new solder paste, Pb95Sn5, is adopted in PowerPAK? SO-8L package to replace the original material, Pb88Sn10Ag2, for the yield improvement.Besides, the stamp clip from PDE, ?37-4365-1?, is assembled in PowerPAK? SO-8L package with 2mil die for commercial products at Simconix. PDE is one of the qualified suppliers of Simconix with the quality system has been certified by ISO-140001 and IATF-16949.
Description of Change: The wafer plating process for commercial power MOSFET products will move to a new building within the same Laguna Technopark. Classification of Change: In order to increase the capacity, Vishay Siliconix has moved the Philippines wafer plating facility in a larger building with the same equipment, same process, and same personnel.m Expected Influence on Quality/Reliability/Performance: There will be no effect on performance, quality or reliability and no change to form, fit, or function of the shipped devices.Vishay Brand(S): Vishay Siliconix Time Schedule: Start Shipment Date: Mon Feb 6, 2023
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SIJ462ADP-T1-GE3&field4=Vishay&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/sij462adp-t1-ge3-vishay-5132685
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SIJ462ADP-T1-GE3&field4=Vishay&field18=https://p1na.futureelectronics.com/p/semiconductors--discretes--transistors--mosfets/sij462adp-t1-ge3-vishay-5132685
Vishay SIJ462ADP-T1-GE3 - Technical Attributes
| Fet Type: | N-Ch |
| No of Channels: | 1 |
| Drain-to-Source Voltage [Vdss]: | 60V |
| Drain-Source On Resistance-Max: | 7.2mΩ |
| Rated Power Dissipation: | 22.3W |
| Qg Gate Charge: | 19.8nC |
| Gate-Source Voltage-Max [Vgss]: | 20V |
| Drain Current: | 39.3A |
| Turn-on Delay Time: | 11ns |
| Turn-off Delay Time: | 20ns |
| Rise Time: | 6ns |
| Fall Time: | 6ns |
| Operating Temp Range: | -55°C to +150°C |
| Input Capacitance: | 1235pF |
| Package Style: | POWERPAK-SO-8L |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
3000 per Cut Tape
Package Style:
POWERPAK-SO-8L
Mounting Method:
Surface Mount
