Manufacturer Part #

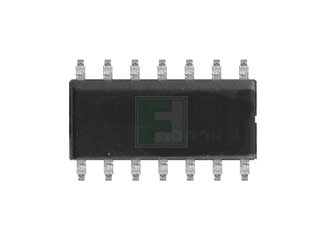

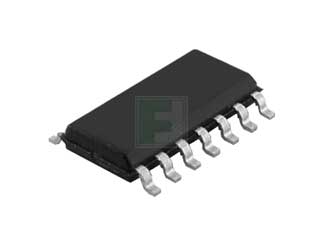

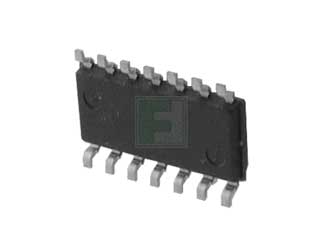

MC14007UBDR2G
MC14007UB Series 3 to 18 V 10 mA Dual Comparator Pair Plus Inverter - SOIC-14
| | |||||||||||
| | |||||||||||
| Mfr. Name: | onsemi | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:SOIC-14 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2544 | ||||||||||
Product Specification Section
onsemi MC14007UBDR2G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MC14007UBDR2G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/semiconductors--logic--4000-series/mc14007ubdr2g-onsemi-1986785
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MC14007UBDR2G&field4=onsemi&field18=https://p1na.futureelectronics.com/p/semiconductors--logic--4000-series/mc14007ubdr2g-onsemi-1986785
onsemi MC14007UBDR2G - Technical Attributes
Attributes Table
| Logic Circuit: | Comparator |
| Family: | MC1400 |
| No of Functions / Channels: | 2 |
| Output Characteristics: | 3-ST |
| Supply Voltage-Nom: | 3V to 18V |
| Power Dissipation: | 500mW |
| Operating Temperature: | -55°C to +125°C |
| Capacitance: | 7.5pF |
| No of Inputs: | 3 |
| No of Outputs: | Triple |
| High Level Output Current: | -10mA |
| Low Level Output Current: | 10mA |
| No of Pins: | 14 |
| Quiescent Current: | 1µA |
| Moisture Sensitivity Level: | 1 |
| Package Style: | SOIC-14 |
| Mounting Method: | Surface Mount |
Features & Applications
The MC14007UBDR2G is a multipurpose device consists of three N−Channel and three P−Channel enhancement mode devices packaged to provide access to each device. Available in a SOIC-14 package.
Features:
- Diode Protection on All Inputs
- Supply Voltage Range = 3.0 Vdc to 18 Vdc
- Capable of Driving Two Low−power TTL Loads or One Low−power Schottky TTL Load Over the Rated Temperature Range
- Pin−for−Pin Replacement for CD4007A or CD4007UB
- This device has 2 outputs without ESD Protection. Antistatic precautions must be taken
- These Devices are Pb−Free and are RoHS Compliant
Applications:
- Inverter
- Pulse-shapers
- Linear Amplifiers
- Threshold detectors
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
2,500
$0.109
5,000
$0.108
10,000
$0.107
37,500+
$0.104
Product Variant Information section
Available Packaging
Package Qty:
2500 per Reel
Package Style:
SOIC-14
Mounting Method:
Surface Mount
