Manufacturer Part #
M306NLFHGP#U3

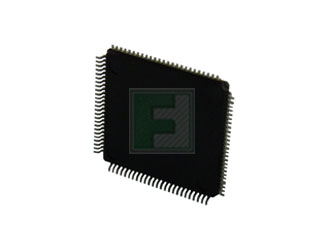

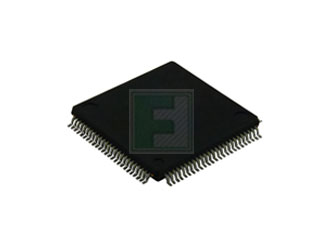

M16C Series 16 bit 31 kB RAM 384 kB Flash 85 I/O Microcontroller - LQFP-100
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Renesas | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:90 per Tray Package Style:LQFP-100 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Renesas M306NLFHGP#U3 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Discontinuation
08/15/2023 Details and Download
Overview:The purpose of this notification is to communicate Renesas Electronics America, Inc. (REA) has begun the End of Life (EOL) Process on select part numbers.Final last time buy (LTB) orders placed to REA or to a franchised REA distributor. June 15th, 2024Planned date for last time shipment (LTS) from REA. June 30th, 2025
Discontinuation
07/27/2023 Details and Download
Part Status:
Active
Active
Renesas M306NLFHGP#U3 - Technical Attributes
Attributes Table
| Family Name: | M16C |
| Core Processor: | M16C/60 |
| Program Memory Type: | Flash |
| Flash Size (Bytes): | 384kB |
| RAM Size: | 31kB |
| Speed: | 24MHz |
| No of I/O Lines: | 85 |
| InterfaceType / Connectivity: | I2C/UART |
| Peripherals: | I2C/On-Chip-ADC/On-Chip-DAC/UART/Watchdog |
| Number Of Timers: | 11 |
| Supply Voltage: | 3V to 5.5V |
| Operating Temperature: | -40°C to +85°C |
| On-Chip ADC: | 26-chx10-bit |
| On-Chip DAC: | 2-chx8-bit |
| Watchdog Timers: | 1 |
| Package Style: | LQFP-100 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
12 Weeks
Quantity
Unit Price
90+
$24.42
Product Variant Information section
Available Packaging
Package Qty:
90 per Tray
Package Style:
LQFP-100
Mounting Method:
Surface Mount
