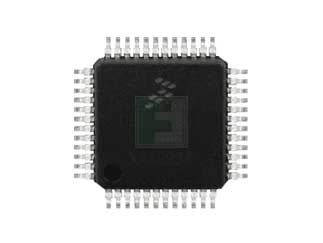

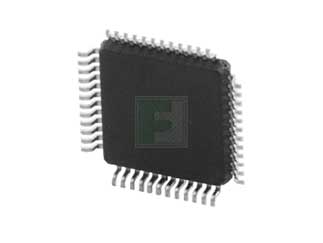

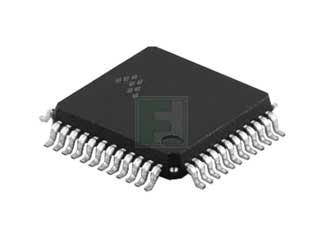

MC56F8322VFAE
MC56F8322 Series 32 KB Flash 6 KB RAM 40 MHz 16-Bit Microcontroller - LQFP-48
| | |||||||||||
| | |||||||||||
| Mfr. Name: | NXP | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1250 per Tray Package Style:LQFP-48 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
NXP MC56F8322VFAE - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
3A991.a.2
This item may be subject to export licensing controls.
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MC56F8322VFAE&field4=NXP&field18=https://p1na.futureelectronics.com/p/semiconductors--microcontrollers--16-bit-general-purpose/mc56f8322vfae-nxp-C016711266
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MC56F8322VFAE&field4=NXP&field18=https://p1na.futureelectronics.com/p/semiconductors--microcontrollers--16-bit-general-purpose/mc56f8322vfae-nxp-C016711266
NXP MC56F8322VFAE - Technical Attributes
Attributes Table
| Family Name: | MC56F83xx |
| Core Processor: | 56800E |
| Program Memory Type: | Flash |
| Flash Size (Bytes): | 32kB |
| RAM Size: | 6kB |
| Speed: | 60MHz |
| No of I/O Lines: | 21 |
| InterfaceType / Connectivity: | CAN/SCI/SPI |
| Peripherals: | POR/PWM/Temp Sensor/Watchdog |
| Number Of Timers: | 2 |
| Supply Voltage: | 2.25V to 3.6V |
| Operating Temperature: | -40°C to +105°C |
| On-Chip ADC: | 2(3-chx12-bit) |
| Watchdog Timers: | 1 |
| Package Style: | LQFP-48 |
| Mounting Method: | Surface Mount |
Features & Applications
The MC56F8322VFAE is a 16-Bit Digital Signal Controller with 12 KB RAM, 32 KB Flash, available in LQFP-48 Package.
It combines, on a single chip, the processing power of a DSP and the functionality of a microcontroller with a flexible set of peripherals to create an extremely cost-effective solution.
Features:
- Up to 60 MIPS at 60MHz core frequency
- DSP and MCU functionality in a unified, C-efficient architecture
- 32KB Program Flash
- 4KB Program RAM
- 8KB Data Flash
- 8KB Data RAM
- 8KB Boot Flash
- One 6-channel PWM module
- Two 3-channel 12-bit ADCs
- Temperature Sensor
- One Quadrature Decoder
- FlexCAN module
- Up to two Serial Communication Interfaces (SCIs)
- Up to two Serial Peripheral Interfaces (SPIs)
- Two general-purpose Quad Timers
- Computer Operating Properly (COP)/Watchdog
- On-Chip Relaxation Oscillator
- JTAG/Enhanced On-Chip Emulation (OnCE™) for unobtrusive, real-time debugging
- Up to 21 GPIO lines
- 48-pin LQFP Package
Applications:
- Industrial Control
- Motion control
- Home appliances
- General purpose inverters
- Smart sensors
- Fire and security systems
- Switched mode power supply
- Power management, and medical monitoring applications
