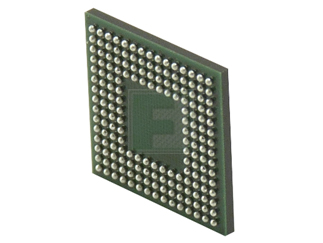

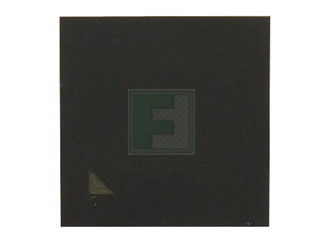

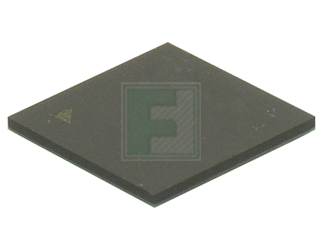

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

R5F56108WDBG#U0

RX610 Series 2 MB Flash 128 kB RAM SMT 32-Bit Microcontroller -LFBGA-176

R5F56108WDBG#U0 Datasheet R5F56108WDBG#U0 Documentation Selection Guide User Manual Catalog Release Note Application Note
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Renesas
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 152 per Tray Package Style: LFBGA-176 Mounting Method: Surface Mount
Date Code:

Renesas R5F56108WDBG#U0 - Technical Attributes

Family Name:	RX600
Core Processor:	RX
Program Memory Type:	Flash
Flash Size (Bytes):	2MB
RAM Size:	128kB
Speed:	100MHz
No of I/O Lines:	144
InterfaceType / Connectivity:	I2C/SCI/USART
Peripherals:	I2C/On-Chip-ADC/On-Chip-DAC/SCI/USART/Watchdog
Number Of Timers:	8
Supply Voltage:	2.7V to 3.6V
Operating Temperature:	-40°C to +85°C
On-Chip ADC:	4(4-chx10-bit)
On-Chip DAC:	2-chx10-bit
Watchdog Timers:	1
Package Style:	LFBGA-176
Mounting Method:	Surface Mount

Expand List

Collapse List

Features & Applications

The R5F56108WDBG (RX610) Group is built around the RX core and has enhanced analog, communication, and timer functions. This products are equipped with four units of 10-bit A/D converters (1 ms),10-bit D/A converter, large-capacity memory (2 MB flash, 128 KB RAM)

Device are capable of single-cycle access at 100 MHz, 7 channels of SCI, I2C, 16 channels of 16-bit timer, 4 channels of 8-bit timer, and major functions. They enable a system to be configured without peripheral memory and other peripheral devices, reducing the total cost of the system

Features:

CPU core RX CPU:
- General registers: 32-bit x 16
- Multiplier: 32-bit multiplier
- Divider: Yes
- Multiply-accumulator
Maximum operating frequency 100 MHz
Power supply voltage 3.0 to 3.6 V
Flash ROM (for program storage) Max. 2 MB
Flash ROM (for data storage) 32 KB
RAM 128 KB
On-chip peripheral functions
Direct memory access controller (DMAC) × 4 channels
Data transfer controller (DTC)
16-bit timer pulse unit (TPU) × 12 channels
16-bit compare match timer × 4 channels
8-bit timer (TMR) × 4 channels
Serial communication interface (SCI) × 7 channels
I2C bus interface × 2 channels
A/D converter (10-bit) × 16 channels [4 units: 4 channels/unit]
On-chip debugging function
Low power consumption modes 4 modes:
- Sleep mode
- All-module clock stop mode
- Software standby mode
- Deep software standby mode
