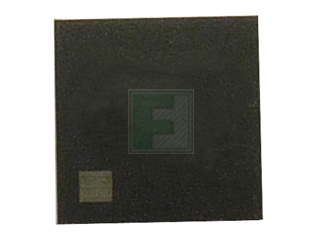

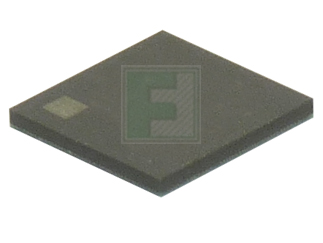

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

R5F56218BDLE#U0

RX621 Series 512 kB Flash 96 kB RAM SMT 32-Bit Microcontroller-TFLGA-145

R5F56218BDLE#U0 Datasheet R5F56218BDLE#U0 Documentation User Manual Catalog Release Note Application Note--Hardware Data Collection and Filtering using the RX63N Selection Guide
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	Renesas
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 286 per Tray Package Style: TFLGA-145 Mounting Method: Surface Mount
Date Code:

Renesas R5F56218BDLE#U0 - Technical Attributes

Family Name:	RX600
Core Processor:	RX
Program Memory Type:	Flash
Flash Size (Bytes):	512kB
RAM Size:	96kB
Speed:	100MHz
No of I/O Lines:	103
InterfaceType / Connectivity:	CAN/I2C/SCI/SPI/UART/USB
Peripherals:	CAN/I2C/On-Chip-ADC/On-Chip-DAC/SCI/SPI/UART/USB/Watchdog
Number Of Timers:	20
Supply Voltage:	2.7V to 3.6V
Operating Temperature:	-40°C to +85°C
On-Chip ADC:	8-chx10-bit / 8-chx12-bit
On-Chip DAC:	2-chx10-bit
Watchdog Timers:	2
Package Style:	TFLGA-145
Mounting Method:	Surface Mount

Expand List

Collapse List

Features & Applications

The RX621 Group is built around the RX core and is equipped with 2 channels of USB 2.0 full-speed (Host, Function and OTG) and 1 channel of CAN as a communications interface. The products are designed to not put a restriction on applications based on their communication method; add-ons are used to achieve different communication methods. They are also equipped with a rich set of system fail-safe functions such as power-on reset (POR), low voltage detection (LVD), and an independent watchdog timer.

Features:

32-bit RX CPU Core
Low Power Design and Architecture
Main Flash Memory, no Wait-State
Data Flash Memory
SRAM, no Wait-State
DMA
Reset and Supply Management
System Clocking with Clock Monitoring
Real Time Clock
Two Independent Watchdog Timers
Up to 14 Communication Interfaces
External Address Space
TFT-LCD up to WQVGA resolution
Up to 20 Extended Function Timers
1-MHz ADC units with two combination choices
10-bit DAC, 2 channels
Up to 128 GPIO
