ATMEGA1608-MFR

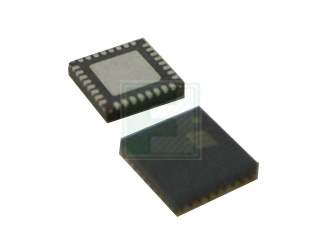

ATmega Series 16 kB Flash 2 kB RAM 20 MHz 8-Bit Microcontroller - VQFN-32
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:5000 per Reel Package Style:VQFN-32 Mounting Method:Surface Mount | ||||||||||
| Date Code: | 1913 | ||||||||||
Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Change: Qualification of MMT as an additional assembly site for selected Atmel products available in 32L VQFN (5x5x0.9mm) package with MSL 1 classification. Pre Change: For ATMEGA168PBxxx, ATMEGA48PBxxx and ATMEGA88PBxxx device families:Assembled at ASCL assembly site with MSL 1 classification using Cu bond wire, EN-4900G die attach, 138x138 paddle size.For ATMEGA1608xxx and ATMEGA808xxx device families:Assembled at ASCL assembly site with MSL 3 classification using PdCu bond wire, EN-4900G die attach, 138x138 paddle size.For ATMEGA328PBxxx device family:Assembled at ASCL assembly site with MSL 3 classification using CuPdCu bond wire, EN-4900G die attach, 138x138 paddle sizePost Change:For ATMEGA168PBxxx, ATMEGA48PBxxx and ATMEGA88PBxxx device families:Assembled at ASCL assembly site with MSL 1 classification using Cu bond wire, EN-4900G die attach, 138x138 paddle size.OrAssembled at MMT assembly site with MSL 1 classification using CuPdAu bond wire, 3280 die attach, 150x150 paddle sizeImpacts to Data Sheet: NoneChange Impact:None Reason for Change:To improve productivity and on-time delivery performance by qualify MMT as an additional assembly site.Change Implementation Status:In Progress Estimated First Ship Date: November 15, 2020 (date code: 2047)NOTE: Please be advised that after the estimated first ship date customers may receive pre and post change parts.
Microchip has released a new Product Documents for the ATmega808/809/1608/1609 Data Sheet of devices.Notification Status: FinalDescription of Change: This revision includes the following changes - see attachedImpacts to Data Sheet: NoneReason for Change: To Improve ManufacturabilityChange Implementation Status: CompleteDate Document Changes Effective: 22 Jun 2020NOTE: Please be advised that this is a change to the document only the product has not been changed.Markings to Distinguish Revised from Unrevised Devices: N/A
Description of Change: 1) Entire document section changes:a. Change document structure from family and pin organized documents, to one document per data sheet:FROM:: - megaAVR 0-series Family Data Sheet - ATmega808/1608/3208/4808 - 28-pin Data Sheet- ATmega808/1608/3208/4808 - 32-pin Data Sheet - ATmega809/1609/3209/4809 - 48-pin Data Sheet TO: - ATmega808/809/1608/1609 Data Sheetb. Electrical Characteristics section changes: - Minimum and maximum values added- Editorial updatesc.Typical Characteristics section changes:- Added more graphs to the Power Consumption section.Reason for Change: To Improve ProductivityDate Document Changes Effective: 6 Feb 2020NOTE: Please be advised that this is a change to the document only the product has not been changed.
Notification subject: ERRATA - ATmega808/809/1608/1609 Silicon Errata and Data Sheet ClarificationNotification Status: FinalDescription of Change: 1) Change document structure from one document for the entire megaAVR 0-series to one document per data sheet. 2) Updated document template 3) The ADC errata, ADC Functionality Cannot be Ensured with ADCCLK Above 1.5 MHz for All Conditions, has been split into two separate erratas and rewritten.Impacts to Data Sheet: NoneReason for Change: To Improve ProductivityChange Implementation Status: CompleteDate Document Changes Effective: 03 Feb 2020NOTE: Please be advised that this is a change to the document only the product has not been changed.Markings to Distinguish Revised from Unrevised Devices: N/A
Final Notice: Implement top marking changes for selected ATMEGA480x, ATMEGA320x, ATMEGA160x, ATMEGA80x Atmel device families manufactured with 59.91k process technologyPre Change: With package code, temperature grade, packing media and die rev in the top markingPost Change: Without package code, temperature grade, packing media and die rev in the top markingReason for Change:To improve manufacturability and on time delivery by standardizing top marking format for ATMEGA480x, ATMEGA320x, ATMEGA160x, ATMEGA80x device familiesPlease be advised that after the estimated first ship date customers may receive pre and post change parts
Description of Change:1) Entire Document: Editorial Updates.2) Features: Added industrial temperature range -40degC to +85degC3) Pinout: Added note about QFN center pad attachment4) Ordering Information: a) Added table of available product numbers b) Updated Product Information System figure5) Package Drawings: Updated TQFP package drawingReason for Change: To Improve ManufacturabilityDate Document Changes Effective: 23 Aug 2019NOTE: Please be advised that this is a change to the document only the product has not been changed.
Description of Change: 1) Entire document chapter: Editorial updates2) Feature chapter: Added industrial temperature range -40�C to +85�C3) 2 megaAVR 0-series Overview chapter: megaAVR 0-series Overview. Added ordering code for industrial temperature range in megaAVR Device Designations figure.4) 5.8 Fuses (FUSE) chapter: Added default fuse valuesReason for Change: To Improve ManufacturabilityPlease be advised that this is a change to the document only the product has not been changed
Microchip has released a new DeviceDoc for the megaAVR 0-series Silicon Errata and Data Sheet Clarifications of devices. Description of Change:CPUINT: 2.8.1 Interrupt Level 1 Does Not WorkReason for Change: To Improve ProductivityDate Document Changes Effective: 05 Aug 2019NOTE: Please be advised that this is a change to the document only the product has not been changed.
ERRATA - megaAVR 0-series Silicon Errata and Data Sheet Clarifications Microchip has released a new DeviceDoc for the megaAVR 0-series Silicon Errata and Data Sheet Clarifications of devices. Description of Change: 1. Document:a. Adding variants with 16 KB and 8 KB Flashb. Adding 40-pin variant of ATmega4809c. Changing document title d. Adding section 3. Data Sheet Clarifications2. New Errata: a. PORTMUX: 2.2.1 SPI SS Pin is Connected to Pin Even if SPI is Configured to Have No Port Connectionb. TCB: 2.6.2 Minimum Event Duration Must Exceed Selected Clock Period c. USART: 2.7.1 TXD Pin Override Not Released When Disabling the Transmitter3. Erratum for TCA removed: Issuing a restart will clear the direction bit - the data sheet is describing this correctlyReason for Change: To Improve ProductivityPlease be advised that this is a change to the document only the product has not been changed.
Description of Change: 1) Added ATmega808/ATmega1608 2) Updated Electrical Characteristics section and Typical Characteristics section 3) Updated package drawingsReason for Change: To Improve ManufacturabilityDate Document Changes Effective: 28 Apr 2019NOTE: Please be advised that this is a change to the document only the product has not been changed.
Product Lifecycle:
-
ROHS Compliant -
Lead Free
Technical Attributes
| Family Name: | ATmega |
| Core Processor: | AVR |
| Program Memory Type: | Flash |
| Flash Size (Bytes): | 16kB |
| RAM Size: | 2kB |
| Speed: | 20MHz |
| No of I/O Lines: | 27 |
| InterfaceType / Connectivity: | I2C/SPI/UART/USART |
| Peripherals: | Brown-out Detect/POR/PWM/Reset/Watchdog |
| Supply Voltage: | 1.8V to 5.5V |
| Operating Temperature: | -40°C to +125°C |
| On-Chip ADC: | 12-chx10-bit |
| Watchdog Timers: | 1 |
| Package Style: | VQFN-32 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
5000 per Reel
Package Style:
VQFN-32
Mounting Method:
Surface Mount
