Manufacturer Part #
ATMEGA2564RFR2-ZUR

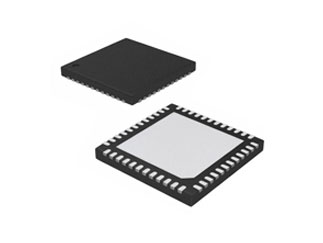

ATmega Series 256 KB Flash 32 KB SRAM 16 MHz 8-Bit Microcontroller - QFN-48
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:4000 per Reel Package Style:QFN-48 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Microchip ATMEGA2564RFR2-ZUR - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Change: Qualification of palladium coated copper with gold flash (CuPdAu) as a new bond wire material for selected ATSAM3S2A, ATSAM3S4A, ATSAM3S1A, ATSAM3N00A,ATSAM3N1A, ATSAM3N0A, AT91SAM7S32, AT86RF215M, ATmega1284RFR2, ATmega2564RFR2, ATmega644RFR2, AT86RF215, AT86RF215IQ, ATSAM4LS8A, ATSAM4LC8A, AT91SAM7S321, and ATSAM3N0AA device families available in 48L VQFN (7x7x1.0mm) package at MMT assembly site.Reason for Change: To improve manufacturability by qualifying palladium coated copper with gold flash (CuPdAu) bond wire as a new wire material.
***FPCN104919 Update ***Revision History:April 16, 2024: Issued final notification.May 08, 2024: Re-issued final notification. Updated pre and post change summary table to include package type and package width.Description of Change:Implement new carrier tape leader and trailer length for various packages shipped from MPHL site.Reason for Change:To improve manufacturability by standardizing the carrier tape and trailer length for various packages shipped from MPHL site.
PCN Status:Final NotificationPCN Type:Manufacturing ChangeDescription of Change:Qualification of MTAI as an additional assembly site for selected AT86RF215, ATmega644/1284/2564RFR2 and ATSAM4Lx8xx device families available in 48L VQFN (7x7x0.9mm) package.Impacts to Data Sheet:NoneChange ImpactNoneReason for Change:To improve on-time delivery performance by qualifying MTAI as an additional assembly site.Change Implementation Status:In ProgressEstimated First Ship Date:December 29, 2021 (date code: 2153)Method to Identify Change:Traceability code
Description of Change:Qualification of MTAI as an additional assembly site for selected AT86RF215, ATmega644/1284/2564RFR2 and ATSAM4Lx8xx device families available in 48L VQFN (7x7x0.9mm) package.Reason for Change:To improve on-time delivery performance by qualifying MTAI as an additional assembly site.Estimated Qualification Completion Date:July 2021
Part Status:
Microchip ATMEGA2564RFR2-ZUR - Technical Attributes
| Family Name: | ATmega |
| Core Processor: | AVR |
| Program Memory Type: | Flash |
| Flash Size (Bytes): | 256kB |
| RAM Size: | 32kB |
| Speed: | 16MHz |
| No of I/O Lines: | 33 |
| InterfaceType / Connectivity: | SPI/USART |
| Number Of Timers: | 6 |
| Supply Voltage: | 1.8V to 3.6V |
| Operating Temperature: | -40°C to +125°C |
| On-Chip ADC: | 8-chx10-bit |
| Watchdog Timers: | 1 |
| Package Style: | QFN-48 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
4000 per Reel
Package Style:
QFN-48
Mounting Method:
Surface Mount
